Magnetic Field Sensor, Axial/Tangential - 1001040

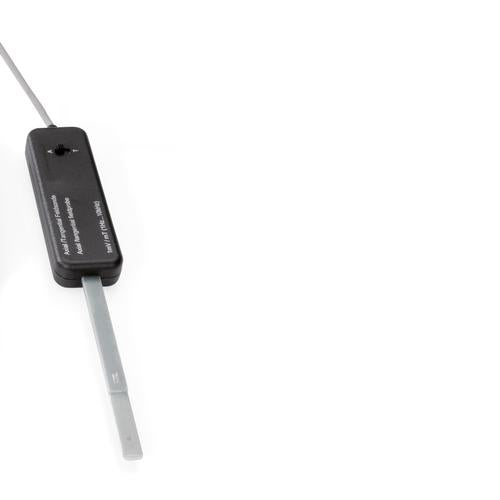

This magnetic-field sensor comprises two integrated Hall sensors for measuring axial and tangential magnetic fields in conjunction with the Teslameter E or the Microvoltmeter. A slide switch is used to changeover between axial and tangential field measurements.

Specifications:

  • Sensitivity: 1mV / mT or 1mV / A / m
  • Probe length (without handle): 125 mm
  • Hall sensors: monocrystalline InAs
  • Sensor area: approx. 1 mm²
  • Probe thickness: 4 mm
  • Connection: PIN plug
8.0 x 8.0 x 4.0 in
