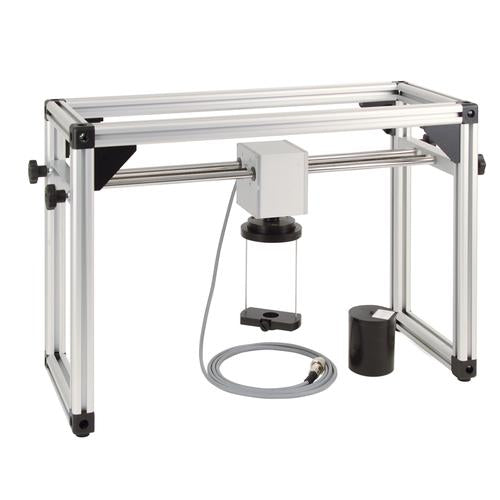

CT scanner for turning and moving samples for the purpose of generating tomographic images. All turning and movement is carried out by means of stepper motors. While the measurement is taking place, the scanner moves the sample backwards and forwards between the ultrasonic sensors connected to the outside of the sample container in accordance with the CT algorithm. Includes a sample stage for making recordings of suitable objects for observation. The sample stage is immersed in a sample trough. The whole slider is height adjustable so that it is possible for the area of the sample under investigation to be modified.
Linear movement: max. 400 mm
Local resolution: <10 µm
Maximum speed of movement: 18 cm/min
Turning angle: 0–360°
Angular resolution: 0.225°
Maximum angular velocity: 1 rpm
Dimensions: 210x353x520 mm3
8.3 x 13.9 x 2.0 in
Features :
MRP: $6,179.50
CT scanner for turning and moving samples for the purpose of generating tomographic images. All turning and movement is carried out by means of stepper motors. While the measurement is taking place, the scanner moves the sample backwards and forwards between the ultrasonic sensors connected to the outside of the sample container in accordance with the CT algorithm. Includes a sample stage for making recordings of suitable objects for observation. The sample stage is immersed in a sample trough. The whole slider is height adjustable so that it is possible for the area of the sample under investigation to be modified.
Linear movement: max. 400 mm
Local resolution: <10 µm
Maximum speed of movement: 18 cm/min
Turning angle: 0–360°
Angular resolution: 0.225°
Maximum angular velocity: 1 rpm
Dimensions: 210x353x520 mm3
8.3 x 13.9 x 2.0 in
Features :
