Interferometer - 1002651

$4,408.31
SKU:
1002651
Title:
Quantity:
Buy now
Interferometer - 1002651

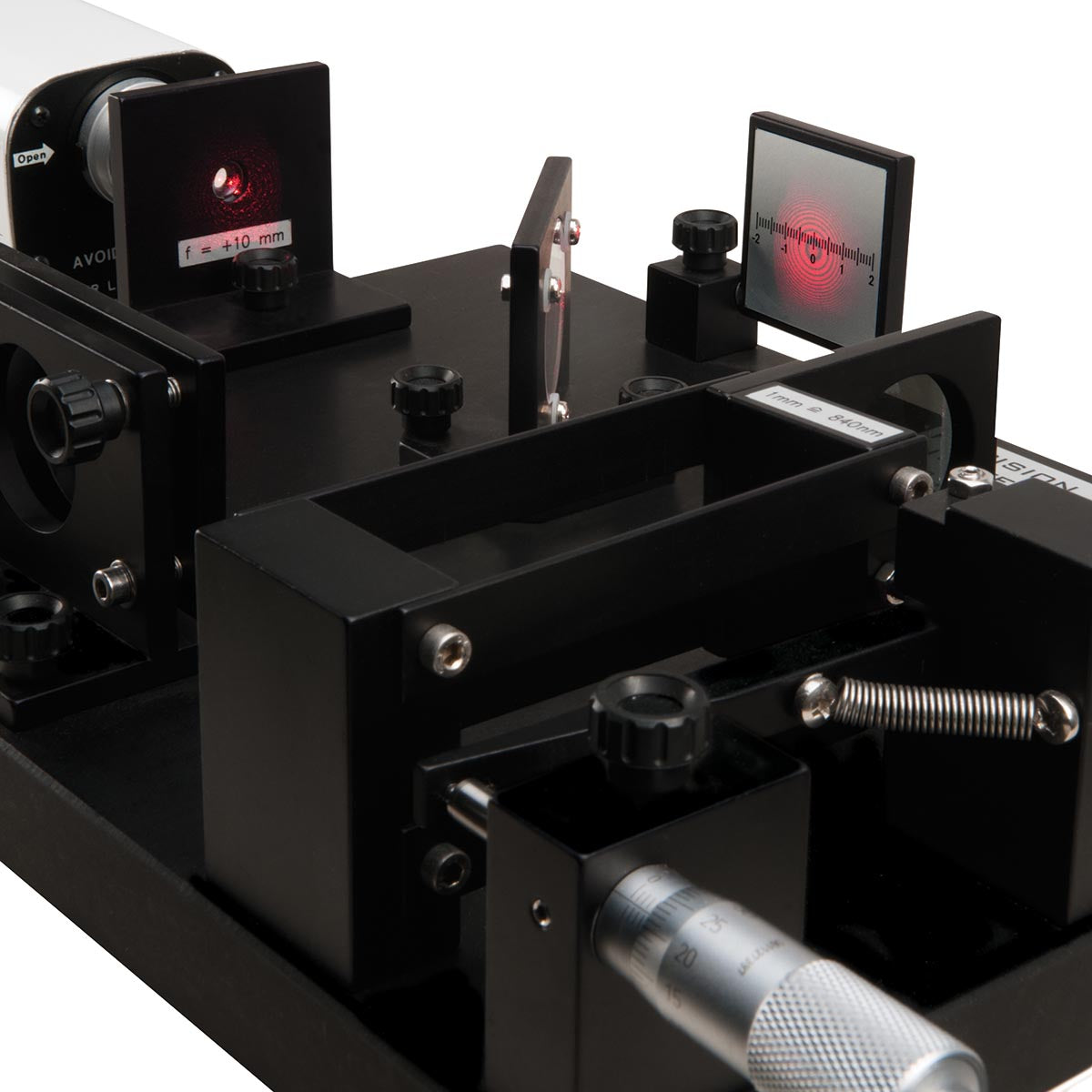

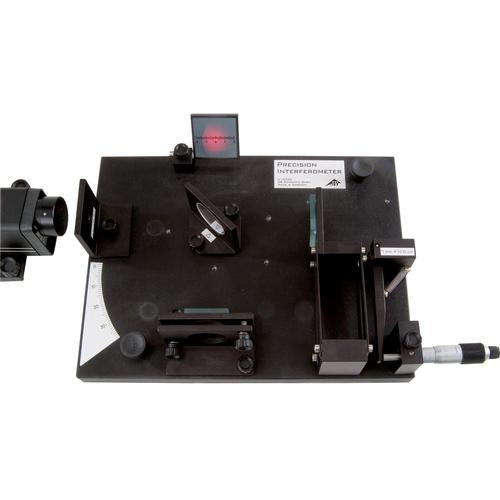

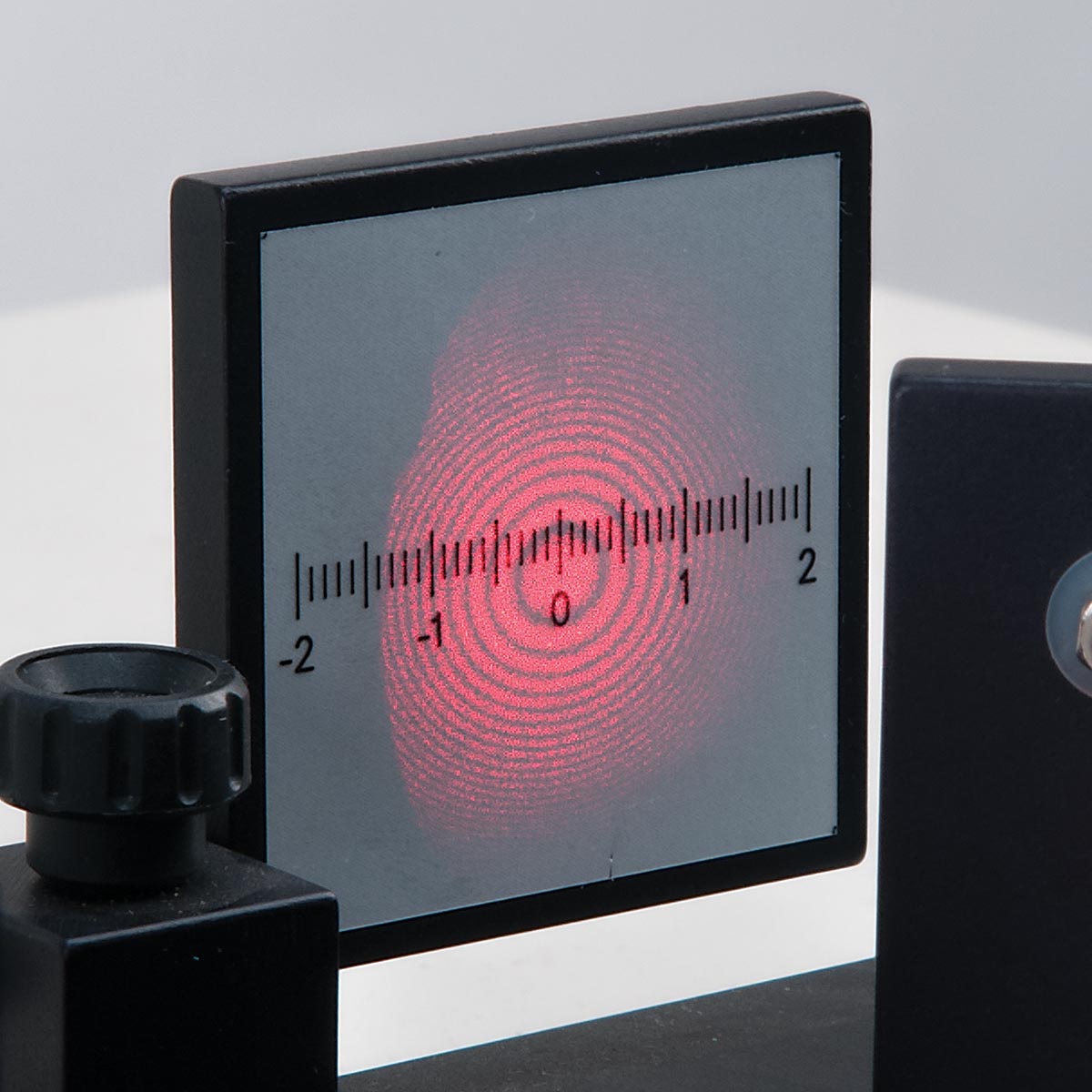

This complete equipment set comprises high-grade optical components mounted on a heavy, rigid base plate for precise and reproducible measurements. The large optical components permit a generation of clear and well-defined interference patterns in daylight. The reflective observation screen has an adjustable inclination. Pre-defined component positions allow quick rearrangement to ensure extremely rapid preparation for the various experiments.

Experiment topics:

  • Michelson interferometer
  • Fabry-Perot interferometer
  • Determination of the refractive index of glass*
  • Determination of the refractive index of air*
  • Twyman-Green test for optical components (qualitative)*
*U10351 accessory set required

Specifications:
  • Stable plastic box for storing the mounted and adjusted interferometer
  • Beam splitter: diameter 40 mm, evenness λ/10 (front side), λ/4 (rear side)
  • Surface-coated mirror: dimensions 40x40 mm², evenness <λ/2, eccentric reduction approx. 1:1000 (individual calibration specified on eccentric base)
  • Base plate: weight 5.5 kg, dimensions: 245x330x25 mm³
16.2 x 15.4 x 11.1 in
  • Secure online payment with SSL
  • Expert advice
  • Financing available
  • Easy returns & exchanges
  • International shipping available

    • Features :

    • Hygienic Product : Not Specified
    • Allergy : Not Specified
    Interferometer - 1002651
    • UPC:Not Specified
    • GTIN/ITF Barcode : Not Specified
    • Units of Measure : Not Specified
    • Overall Product Length : Not Specified in
    • Overall Product Width : Not Specified in
    • Overall Product Height : Not Specified in
    • Weight Capacity : Not Specified lbs
    • Actual Product Weight : 20.39
    • Product Assembly : Not Specified
    • Product Installation : Not Specified
    • Country of Origin : Not Specified
    • Case QTY : Not Specified/case
    • Case Weight : Not Specified
    • Ships Via Freight : No
    • Proposition 65 Warning : Not Specified
    Interferometer

    Interferometer

    MRP: $4,408.31

    Interferometer - 1002651

    This complete equipment set comprises high-grade optical components mounted on a heavy, rigid base plate for precise and reproducible measurements. The large optical components permit a generation of clear and well-defined interference patterns in daylight. The reflective observation screen has an adjustable inclination. Pre-defined component positions allow quick rearrangement to ensure extremely rapid preparation for the various experiments.

    Experiment topics:

    • Michelson interferometer
    • Fabry-Perot interferometer
    • Determination of the refractive index of glass*
    • Determination of the refractive index of air*
    • Twyman-Green test for optical components (qualitative)*
    *U10351 accessory set required

    Specifications:
    • Stable plastic box for storing the mounted and adjusted interferometer
    • Beam splitter: diameter 40 mm, evenness λ/10 (front side), λ/4 (rear side)
    • Surface-coated mirror: dimensions 40x40 mm², evenness <λ/2, eccentric reduction approx. 1:1000 (individual calibration specified on eccentric base)
    • Base plate: weight 5.5 kg, dimensions: 245x330x25 mm³
    16.2 x 15.4 x 11.1 in
