Zinc Sample for Hall Effect - 1018752

$263.50
SKU:
1018752
Title:
Quantity:
Buy now

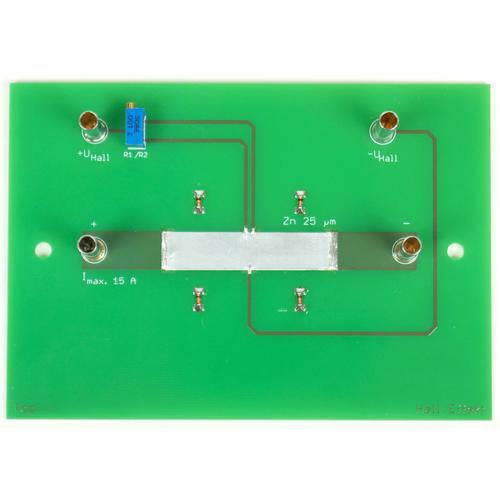

Zinc Sample for Hall Effect - 1018752 For verifying the existence of a Hall-effect voltage across a zinc sample being supplied with a current I and located in a magnetic field acting perpendicular to the direction of the current. Ready-to-use sample is soldered onto a printed circuit board with 4-mm connection sockets. The combined holder for Hall effect is required in order to attach the sample within the magnetic field of an electromagnet.
Thickness of zinc sample: 25µm
Max. current through zinc sample:          15 A DC
Sample surface area:         10x44 mm2
Dimensions: 130x90x25 mm3 approx.
Weight:                                           45g approx.
Experiment Topics:
• Hall effect in metals
• Normal and anomalous Hall effect
• Hall coefficient
  • Secure online payment with SSL
  • Expert advice
  • Financing available
  • Easy returns & exchanges
  • International shipping available
    • Zinc Sample for Hall Effect - 1018752
    • UPC: Not Specified
    • GTIN/ITF Barcode: Not Specified
    • Units of Measure: Not Specified
    • Overall Product Length: Not Specified in
    • Overall Product Width: Not Specified in
    • Overall Product Height: Not Specified in
    • Weight Capacity: Not Specified lbs
    • Actual Product Weight: 0.44
    • Product Assembly: Not Specified
    • Product Installation: Not Specified
    • Country of Origin: Not Specified
    • Case QTY: Not Specified/case
    • Case Weight: Not Specified
    • Ships Via Freight: Not Specified
    • Proposition 65 Warning: Not Specified

    Zinc Sample for Hall Effect - 1018752 For verifying the existence of a Hall-effect voltage across a zinc sample being supplied with a current I and located in a magnetic field acting perpendicular to the direction of the current. Ready-to-use sample is soldered onto a printed circuit board with 4-mm connection sockets. The combined holder for Hall effect is required in order to attach the sample within the magnetic field of an electromagnet.
    Thickness of zinc sample: 25µm
    Max. current through zinc sample:          15 A DC
    Sample surface area:         10x44 mm2
    Dimensions: 130x90x25 mm3 approx.
    Weight:                                           45g approx.
    Experiment Topics:
    • Hall effect in metals
    • Normal and anomalous Hall effect
    • Hall coefficient
