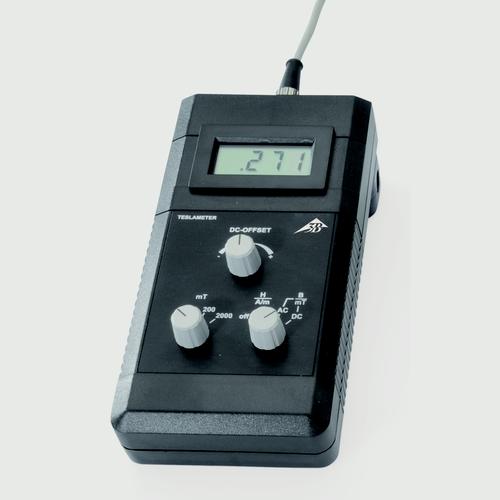

Teslameter E - 1008537
Hand-held meter for measuring magnetic flux density or magnetic field strength in conjunction with an
Axial/Tangential Field Sensor or a
Flexible Magnetic Field Sensor. The measurements are shown on a digital display and also converted into equivalent voltage outputs, which can be accessed from the analog output connection.
Specifications:
- LCD display: 3½-digit, 10 mm high
- Power supply: Rechargeable 9-V block battery providing about 20 hours of operation
- Sensor connection: DIN socket
- Offset compensation: ±0.150 mT
- Measuring modes:
- C-B Flux B of uniform fields
- AC-B Flux B of alternating fields (1 Hz … 10 kHz)
- AC-H Field strength H of alternating fields (1 Hz … 10 kHz)
- Measuring ranges:
- Flux B: ±2.000/±20.00/±200.0/±2000 mT
- Field strength H: ±2.000/±20.00/±200.0/±2000 A/m
- Analog output:
- Connector: 4-mm socket
- Range: 0 … ±2 V
