Stirling Engine G
Stirling Engine G

Stirling Engine G - 1002594

$1,492.81
SKU:
1002594
Title:
Quantity:
Buy now
Stirling Engine G - 1002594

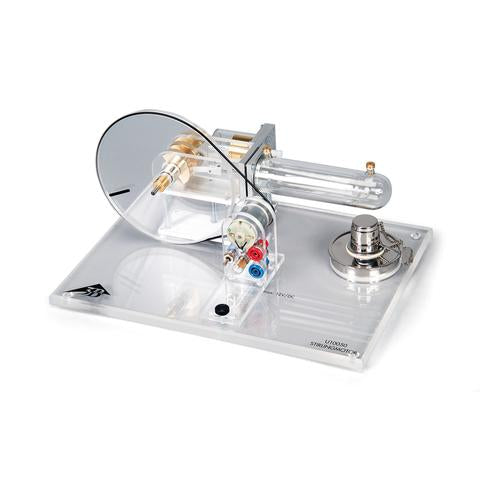

The Transparent Stirling Engine is ideal for quantitative investigations of cyclic thermodynamic processes and specifically for understanding the Stirling cycle. The integrated generator has a two stage belt pulley and is equipped with a switchover option for operating an integrated lamp, external loads, or demonstrating the processes of a heat pump or refrigerator. Includes integrated engine generator and alcohol burner. Fuel not included; please use methylated-spirits, i.e. denatured alcohol.
Refer also to experiment UE2060250.

Features:

  • Recessed temperature measurement sockets
  • Light barrier on flywheel
  • Connection for pressure measurements
  • String to measure the stroke of the power piston and determine volume
  • Displacement cylinder and piston made of heat resistant glass
  • Power cylinder, flywheel, and gearbox covers made of acrylic glass

Experimental topics:
  • Heat engines and heat pumps
  • Interdependence of gas temperature, pressure, volume
  • Investigate pressure-volume (pV) diagrams and Carnot cycles
  • Conversion of mechanical energy to electrical energy
  • Engine efficiencies and thermodynamic losses

Specifications
Power: 1 – 4 W
Idling speed: 1000 rpm
Flywheel: 140 mm dia.
Power cylinder: 25 mm dia.
Stroke of the power piston: 24 mm
Gas volume: 32 cm³ – 44 cm³
Motor generator unit: max. 12 V DC, 0.43 A
Belt pulley: two stage (30 mm dia., 19 mm dia.) 12.2 x 9.1 x 9.9 in
  • Secure online payment with SSL
  • Expert advice
  • Financing available
  • Easy returns & exchanges
  • International shipping available

    • Features :

    • Hygienic Product : Not Specified
    • Allergy : Not Specified
    Stirling Engine G - 1002594
    • UPC:Not Specified
    • GTIN/ITF Barcode : Not Specified
    • Units of Measure : Not Specified
    • Overall Product Length : Not Specified in
    • Overall Product Width : Not Specified in
    • Overall Product Height : Not Specified in
    • Weight Capacity : Not Specified lbs
    • Actual Product Weight : 4.17
    • Product Assembly : Not Specified
    • Product Installation : Not Specified
    • Country of Origin : Not Specified
    • Case QTY : Not Specified/case
    • Case Weight : Not Specified
    • Ships Via Freight : No
    • Proposition 65 Warning : Not Specified
