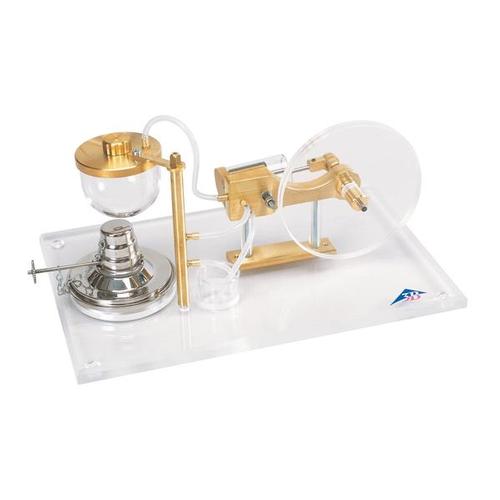

Transparent steam engine for demonstrating how an oscillating steam engine operates. In this engine the cylinder moves around a centre axis. This motion causes the inlet port and outlet port of the steam conduit to open and close.
The base plate and flywheel are made of acrylic glass, while the boiler and working cylinder are made of heat proof quartz glass, making all of the moveable parts and actions very clearly visible. With a ball bearing supported crankshaft made of brass and a safety valve built into the boiler to prevent excessive pressure. Includes spirit burner with adjustable wick for use as heat source.
Rotation speed: 800 rpm
Mech. Power: 1 W
Boiler volume: 50 ml
Run time per load: 20 – 25 min
Max. operating pressure: 0.5 bars
Dimensions: 260x170x110 mm3 12.2 x 9.1 x 9.9 in
Features :
MRP: $1,583.13
Transparent steam engine for demonstrating how an oscillating steam engine operates. In this engine the cylinder moves around a centre axis. This motion causes the inlet port and outlet port of the steam conduit to open and close.
The base plate and flywheel are made of acrylic glass, while the boiler and working cylinder are made of heat proof quartz glass, making all of the moveable parts and actions very clearly visible. With a ball bearing supported crankshaft made of brass and a safety valve built into the boiler to prevent excessive pressure. Includes spirit burner with adjustable wick for use as heat source.
Rotation speed: 800 rpm
Mech. Power: 1 W
Boiler volume: 50 ml
Run time per load: 20 – 25 min
Max. operating pressure: 0.5 bars
Dimensions: 260x170x110 mm3 12.2 x 9.1 x 9.9 in
Features :
