Equipment set for determining the speed of light thanks to electronic run-time measurement.
Comprises a compact housing containing a transmitter emitting short LED pulses, a photo receiver and a calibrated, oscillating quartz generator producing chronologically precise square-wave pulses. Emitted light pulses are returned by an internal reflector and by a triple-prism reflector placed a long distance from the light source. The returning light signals are then superimposed on the original signal. A dual-channel oscilloscope is used to measure the time difference between the two signals. The speed of light can be calculated from this difference and the distance to the triple-prism reflector.
The triple-prism reflector can be installed by eye without the need for complex adjustments

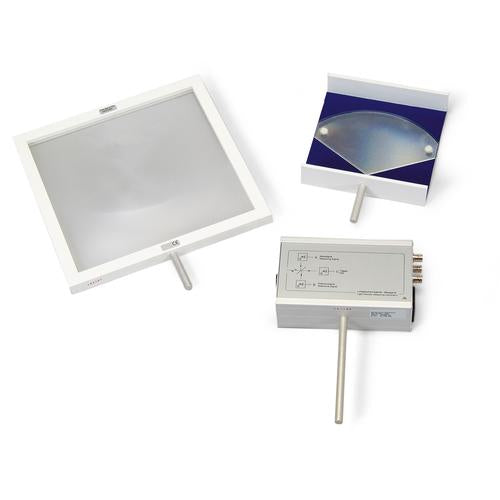

Contents:
1 Control unit with a transmitter, receiver and integrated power supply unit
1 Fresnel lense on shaft
1 Triple-prism reflector on shaft
3 HF cables, 1 m
Additionally required:
Optical Bench
Optical Rider (2x)
Stand Equipment
Equipment set for determining the speed of light thanks to electronic run-time measurement.
Comprises a compact housing containing a transmitter emitting short LED pulses, a photo receiver and a calibrated, oscillating quartz generator producing chronologically precise square-wave pulses. Emitted light pulses are returned by an internal reflector and by a triple-prism reflector placed a long distance from the light source. The returning light signals are then superimposed on the original signal. A dual-channel oscilloscope is used to measure the time difference between the two signals. The speed of light can be calculated from this difference and the distance to the triple-prism reflector.
The triple-prism reflector can be installed by eye without the need for complex adjustments
Contents:
1 Control unit with a transmitter, receiver and integrated power supply unit
1 Fresnel lense on shaft
1 Triple-prism reflector on shaft
3 HF cables, 1 m
Additionally required:
Optical Bench
Optical Rider (2x)
Stand Equipment
