Sine wave generator SG100 (115 V, 50/60 Hz) - 1021745

$287.94

SKU:

1021745

Description
Specifications

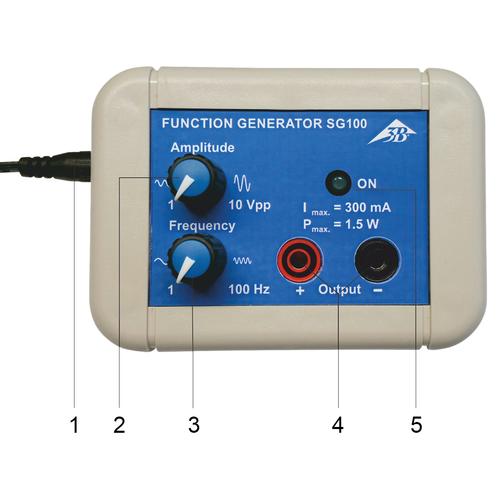

Sine wave generator SG100 (115 V, 50/60 Hz) - 1021745 The sine wave generator SG100 is a generator with a power amplifier for generating sine waves of very low frequency. It is particularly well suited for use in experiments which are to be performed by the students themselves.
The equipment outputs a sine-wave voltage of adjustable amplitude and frequency.
The LED "ON" indicates that the device is ready for operation.
The output is resistant against short circuits, and protected from induced voltages and spark discharges.
Power is supplied via a 12 V AC plug-in power supply.
The sine wave generator SG100 with order number 1021745 is intended for a mains voltage of 115 V (±10%), whereas the one numbered 1021744 is for 230 V (±10%).
Signals:
Frequency range:              1 Hz to 100 Hz
Distortion factor:                <5%
Signal waveform:               Sine
Output:
Output amplitude: 1 Vpp to 10 Vpp, continuously adjustable
Output power:                   1.5 W permanent
Output current:                  300 mA max.
General data:
Power supply: Plug-in power supply, 12 V AC, 0.5 A
Transformer:                     Safety transformer according to DIN EN 61558-2-6
Safety:    DIN EN 61010-1
Dimensions: 100x75x35 mm approx.
Weight:                             400 g approx. (including power supply)
9.6 x 6.3 x 3.1 in
