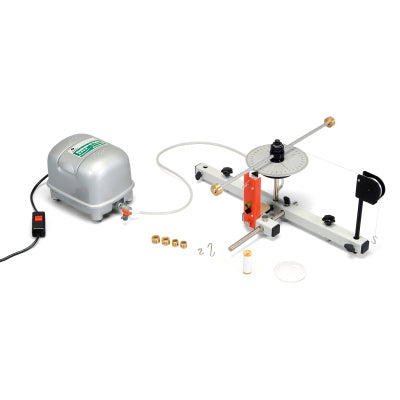

Rotating System on Air Bed (115 V, 50/60 Hz) - 1000781
Apparatus for investigating frictionless rotation. A small rotating disc with a protractor scale supports a cross bar to which weights can be attached. The disc is supported by a bed of air in which its axis is centred. A driving weight is suspended from a hook at the end of a string that is passed over a single pulley on one side and a multiple pulley on the other. The rotation is very slow and can be measured using a stopwatch by hand. Alternatively, a digital timer may be used. This can be started by a mechanism that is supplied with the kit and halted by a signal from a laser reflection sensor when the wheel passes through angle zero.
Experiment topics:
-
Rotational motion: uniform and under constant acceleration
-
Newton's equations of motion for rotational motion
-
Moment of inertia and torque
-
Moment of inertia as determined by experiment
-
Simple harmonic motion of rotating objects
Specifications:
-
Protractor scale: 0 – 360°
-
Scale divisions: 1°
-
Length of cross bar: ca. 440 mm
-
Radii of perforations: 30 – 210 mm
-
Separation of perforations: 20 mm
-
Radii of multiple pulley: 5.0 mm/10.0 mm/15.0 mm
-
Moment of inertia of
-
disc with cross bar: 0.16 g m2 approx.
-
Maximum moment of inertia: 7.1 g m2 approx.
-
Minimum driving torque: 0.05 mN m approx.
-
Maximum driving torque: 0.60 mN m approx.
Contents:
-
1 Air bed
-
1 Rotating disc with cross bar
-
1 Multiple pulley
-
1 Release mechanism
-
2 S-shaped hooks 1.00g
-
1 S-shaped hook 2.00 g
-
1 Set of weights (2x 12.5 g, 2x 25 g, 2x 50 g)
-
1 Compressor for connection to mains
-
1 Silicon tubing with by-pass valve (not illustrated)
-
1 Pulley
-
1 Stand rod with 3 securing screws and 2 screws for levelling
-
1 Stand rod with 2 securing screws
-
1 Stand rod, 250 mm
-
1 Levelling disc
-
1 Roll of cotton thread
28 x 13 x 11 in
