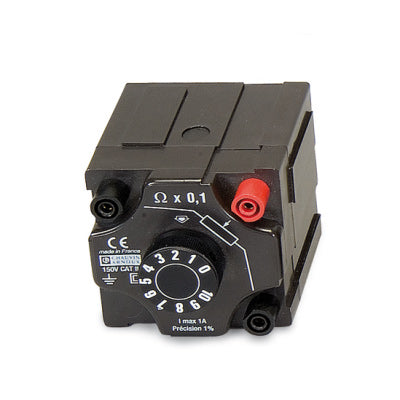

Resistance Decade 1 Ohm - 1002730
Resistance decades which can be mechanically connected to one another, e.g. in order to assemble a Wheatstone bridge. With color-coded safety sockets and control knob for setting measurement resistances in 10 steps. Includes 25-cm safety patch cord.
Connections: via 4-mm-safety sockets
Dimensions: 72 mm x 72 mm x 90 mm
Weight: 220 g
Measurement range: 0.1 Ohm up to 1 Ohm
Step size: 0.1 Ohm
Max. current: 1 A
Accuracy: 1% ± 5 mOhm 2.8 x 2.8 x 3.5 in
