Microwave Set 10.5 GHz (115 V, 50/60 Hz) - 1009950

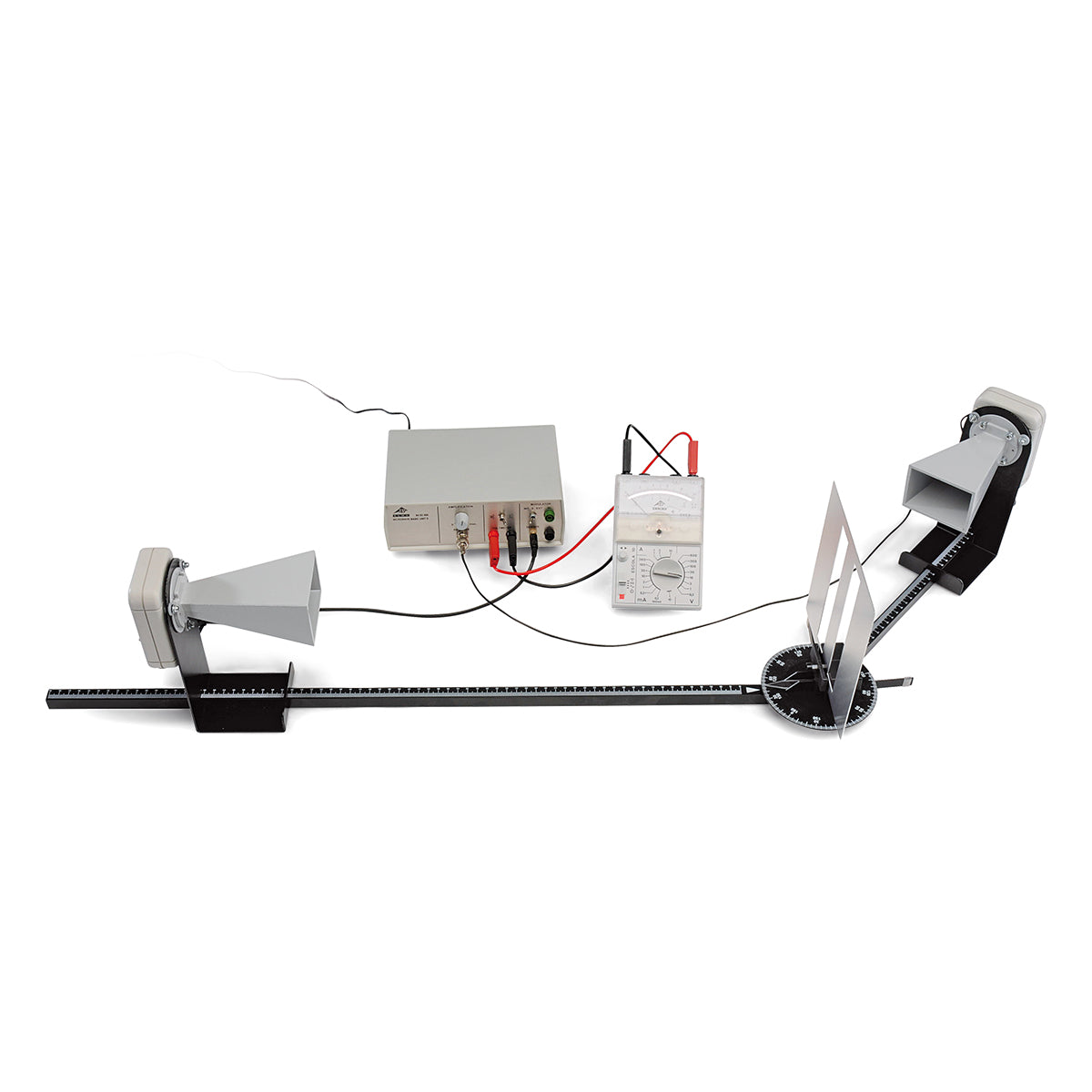

Equipment set for conducting wave optics experiments involving wavelengths in the cm range. A transmitter with a horn antenna radiates a narrow beam of linearly polarised electromagnetic waves with a wavelength of about 3 cm. The direction of polarisation can be altered by rotating the antenna around the axis of propagation. To detect the waves, a horn antenna receiver and a microwave sensor are provided. A control unit converts the intensity of the signal received into a proportionally large output voltage that can be measured using a voltmeter. It is also possible to switch on an acoustic signal with a volume that is proportional to the intensity of the signal.
Oscillator frequency: 10.5 GHz (U8493600-115)
Experiment topics:
-
Straight-line propagation of microwaves
-
Reflection, absorption and transmission
-
Shielding from microwaves
-
Experiments on polarisation
-
Experiments on diffraction
-
Experiments on refraction and interference
-
Transmission of information
Specifications:
-
Power of transmitter: 10 – 25 mW
-
Internal modulator frequency: 3 kHz approx.
-
Acoustic signal: Switchable
-
External modulation: 100 Hz –20 kHz, 1 V max.
-
Output voltage: 10 V max.
-
Receiver with horn antenna: Silicon diode with resonator
-
Microwave sensor: Silicon diode with resonator
-
Dimensions of basic apparatus: approx. 170x200x75 mm³

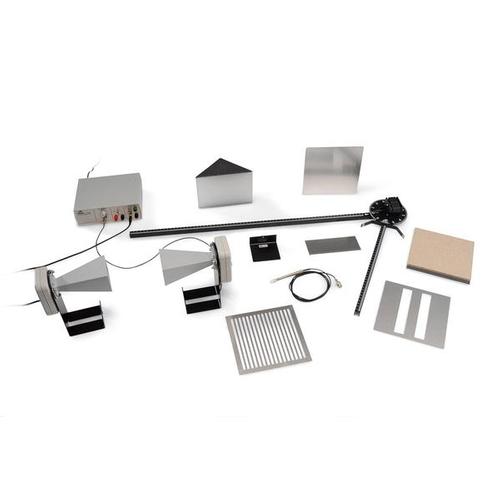

Contents:
-
1 Control unit
-
1 Transmitter with horn antenna
-
1 Receiver with horn antenna
-
1 Microwave probe
-
1 Mikrowave bench, 800 mm
-
1 Microwave bench, 400 mm with plate holder
-
1 Reflection plate 180x180 mm²
-
1 Polarisation grating, 180x180 mm²
-
1 Absorption plate, fibreboard, 180x180 mm²
-
1 Paraffin prism
-
1 Stand for prism
-
1 Plate with double slit
-
1 Cover plate for double slit
