Mechanics Kit for Whiteboard - 1000735
The mechanics kit for whiteboard demonstrations includes more than 25 large, colored and easily distinguished components stored in a case with foam inlay. More than 30 experiments can be set up in rapid time:
- Large components ensure that experiments can be viewed from a distance
- Secure attachment is guaranteed by high-grade AlNiCo magnets
- Quick and easy configuration of experiments
- Measuring units, vector diagrams and explanations can be provided right next to the experimental configuration on the blackboard

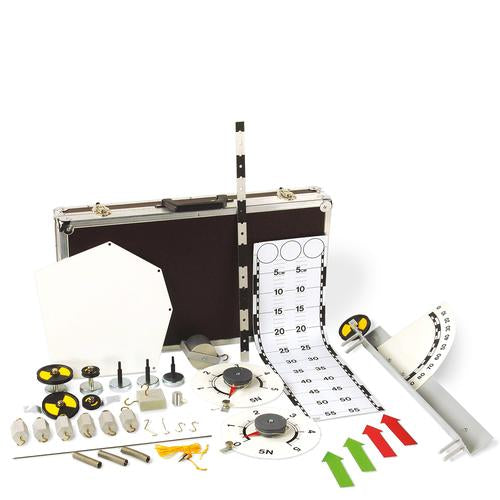

Contents:
- 1 Inclined plane with pulley and angle scale
- 1 Rolling mass, 500 g
- 1 Lever with 20 holes, 545 mm long
- 1 Pointer for lever, 400 mm long
- 1 Slotted counterweight with knurled screw, approx. 20 g
- 1 Pulley, double, 70 mm dia., 40 mm dia.
- 1 Pulley, 70 mm dia.
- 1 Pulley, 40 mm dia.
- 2 Round scale dynamometers, 5 N
- 3 Magnetic tabs with 8 mm axis
- 3 Springs with hook, k = 6.2 N/m
- 1 Dual scale on a magnetic foil, 600x180 mm²
- 4 Arrows and one equilateral triangle on a magnetic foil
- 6 Weights with 2 hooks, 100 g each
- 1 Friction block
- 1 Set of nylon cords
- 1 Center-of-gravity plate
- 1 Plumb
- 3 Rubber grommets
- 3 Brass hook
- 1 Brass clip
- 1 Storage case
- 1 Manual
Experiment topics:

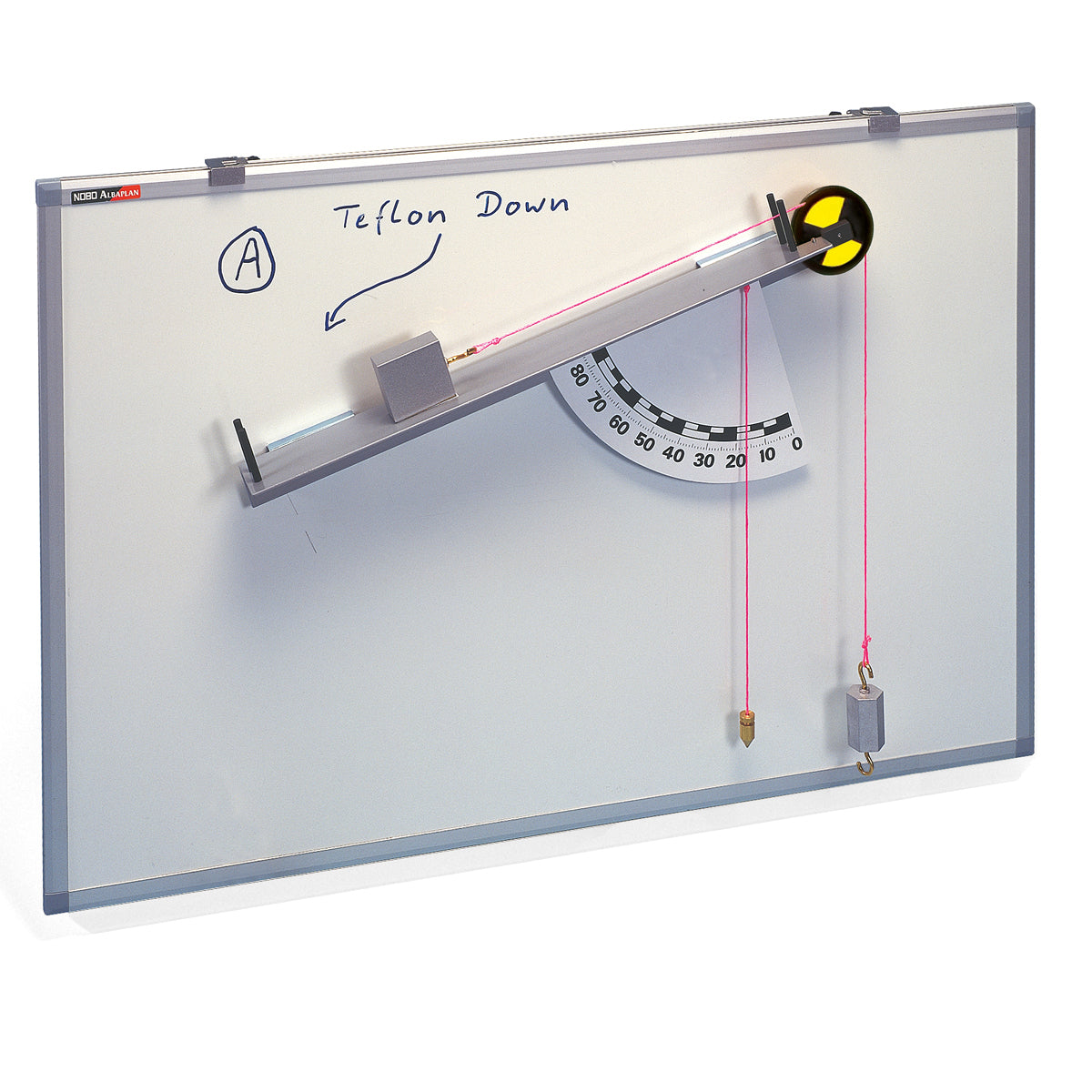

- Inclined plane

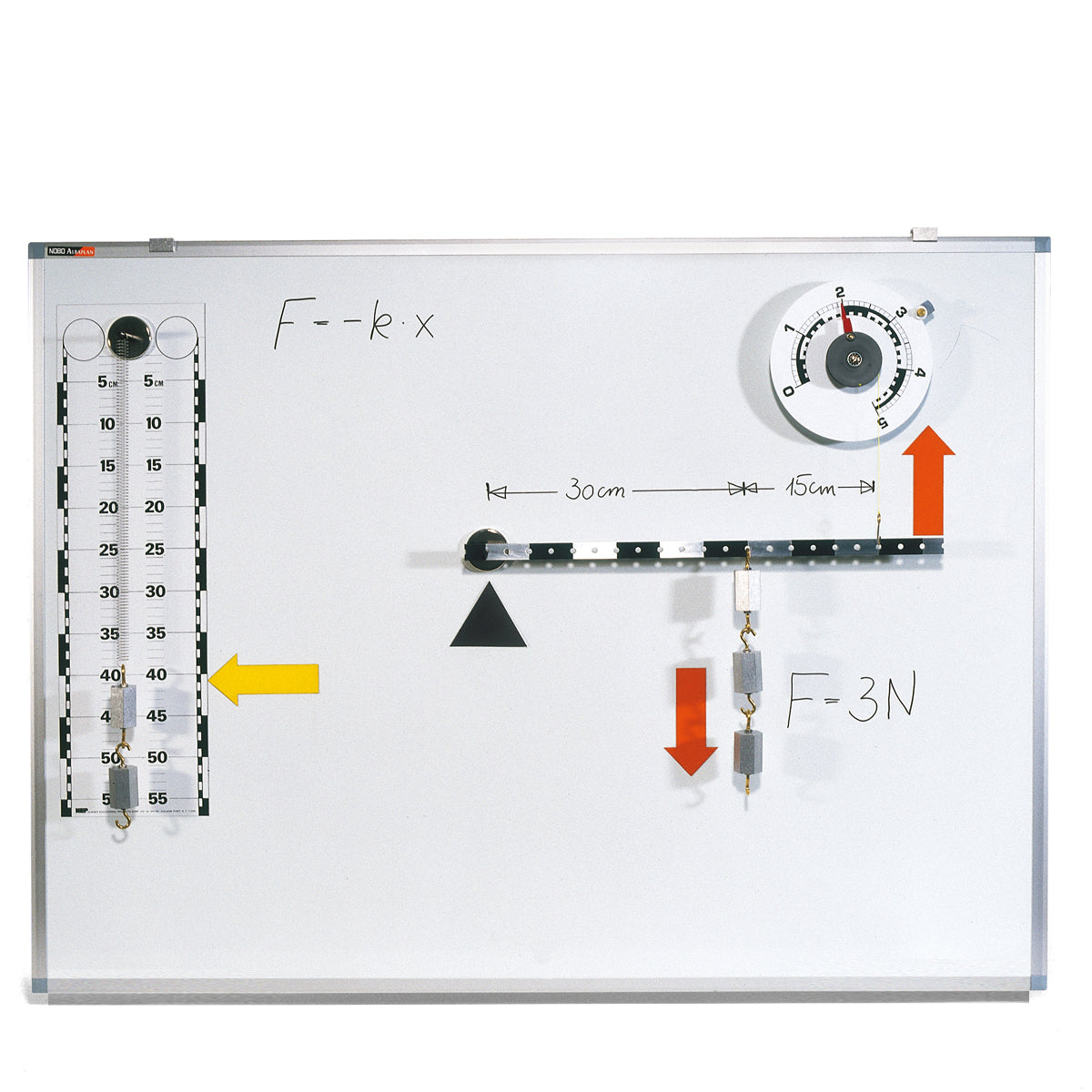

- Lever laws
- Torques and forces
- Forces acting on a lever arm
- Force as a vector
- Pendulum motion
- Physical pendulum
- Fixed and movable pulleys
- Block and tackle
- Hooke’s law
- Coupled resonance
- Center of gravity
- Friction
25 x 17 x 6 in
