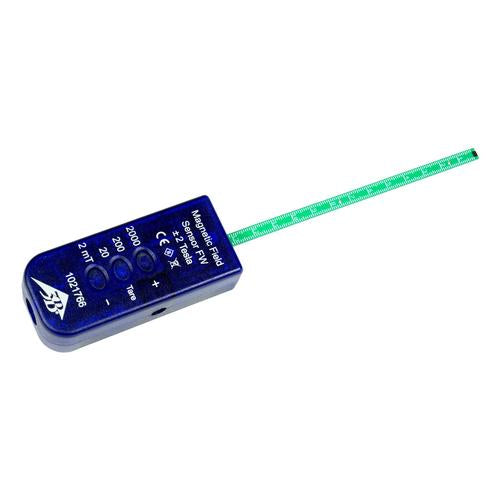

Magnetic field sensor FW ± 2000 mT is used to measure magnetic flux density in the tangential direction. Located on the tip of the probe is a Hall sensor with an output signal proportional to the operating voltage. The sensor is equipped with two range buttons and one tare button, as well as a visual display of the currently active measurement range.
Range: 2, 20, 200, 2000 mT
Resolution: 0,01 mT (2 + 20 mT), 0,1 mT (200 mT), 1 mT (2000 mT)
Configuration: tangent
Sensor type: Linear Hall-Effect-Sensor
Lenght of probe: 135 mm (from front surface of the housing)
Can be used to:
• investigate the Hall effect in semiconductors and metals
• record hysteresis curves
• investigate the Biot-Savart law
| Additionally required: | ||
| Variant 1: (PC/Tablet) | ||
| 1 x | 1021514 | Sensor Cable |
| 1 x | 1022284 | WiLab |
| 1 x | Software License Coach7 | |
| or | ||
| Variant 2: (Data-Logger VinciLab) | ||
| 1 x | 1021514 | Sensor Cable |
| 1 x | 1021477 | VinciLab |
| 1 x | Software License Coach7 | |
Features :
MRP: $446.25
Magnetic field sensor FW ± 2000 mT is used to measure magnetic flux density in the tangential direction. Located on the tip of the probe is a Hall sensor with an output signal proportional to the operating voltage. The sensor is equipped with two range buttons and one tare button, as well as a visual display of the currently active measurement range.
Range: 2, 20, 200, 2000 mT
Resolution: 0,01 mT (2 + 20 mT), 0,1 mT (200 mT), 1 mT (2000 mT)
Configuration: tangent
Sensor type: Linear Hall-Effect-Sensor
Lenght of probe: 135 mm (from front surface of the housing)
Can be used to:
• investigate the Hall effect in semiconductors and metals
• record hysteresis curves
• investigate the Biot-Savart law
| Additionally required: | ||
| Variant 1: (PC/Tablet) | ||
| 1 x | 1021514 | Sensor Cable |
| 1 x | 1022284 | WiLab |
| 1 x | Software License Coach7 | |
| or | ||
| Variant 2: (Data-Logger VinciLab) | ||
| 1 x | 1021514 | Sensor Cable |
| 1 x | 1021477 | VinciLab |
| 1 x | Software License Coach7 | |
Features :
