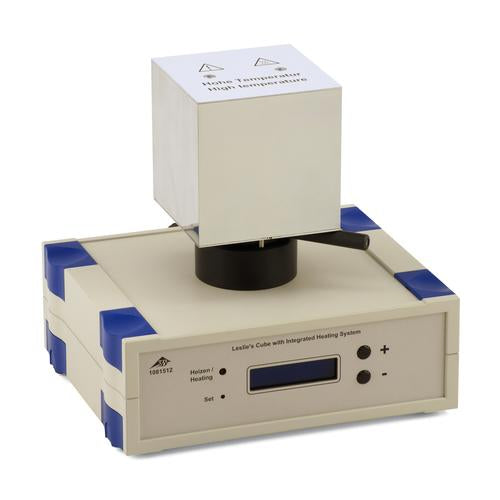

Leslie Cube with Heater (115 V, 50/60Hz) - 1017729
Hollow cube made of aluminium for quantitative analysis of thermal radiation from a hot body as a function of temperature and the nature of the surface. Rotatable cube with built-in 150-W lamp and integrated temperature sensor for regulated heating of surfaces to a variable temperature. With holder for thermopile. One side each is plain, matt, white or painted black.
Heater power: 150 W
Max. temperature: 120°C
Resolution: 1°C
Display: Two rows for actual and set-point temperatures
Dimensions: 250 x 250 x 220 mm³
Weight: 1.8 kg approx.
Advantages:
-
Regulated electric heater with 150 W lamp
-
Easy adjustment and display of actual and set-point temperatures
-
No naked flame and no hot water required
-
The cube can be turned, ensuring all surfaces are equidistant from the thermopile
-
No additional stands needed
Experiment Topics:
-
Introduction to thermal radiation
-
Stefan-Boltzmann law
9.8 x 9.8 x 8.7 in
