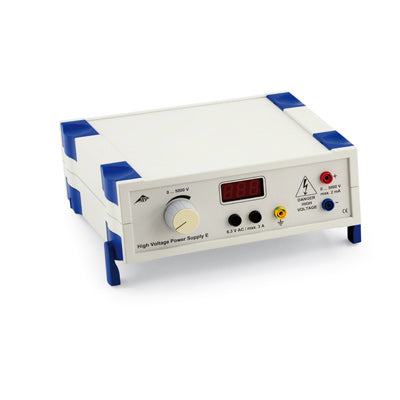

High Voltage Power Supply E (115 V, 50/60 Hz) - 1017725
Ideal for operation of numerous electron tubes:
-
Very high-quality and extremely lightweight equipment in modern casing
-
3-digit digital display for high voltage
-
Regulated high-voltage output not dependent on mains voltage
-
High-voltage-proof supply for heater voltage
-
No need to change fuses
Universally applicable, floating high-voltage source for electrostatic experiments
and for operating spectral tubes, gas discharge tubes and electron tubes. With
built-in transformer resistance to external voltage to provide the heating voltage
for electron tubes. Continuously adjustable high-voltage source, which is safe
to touch, with passive current limiting and digital voltage display.
Output voltage harmless to touch (I
SC max. 2 mA)
Safety transformer conforming to EN 61558-2-6
Safe isolation between power supply and output circuits
High-voltage output: 0 - 5000 V DC, max. 2 mA, floating
Heater voltage output: 6.3 V AC, max. 3 A, resistance to
voltage up to 5 kV
Overload protection: Reversible fuse, 3 A
Connectors: 4-mm safety sockets
Power consumption: 35 VA
High-voltage display: 3-digit LED
Dimensions: 240 x 220 x 90 mm approx.
Weight: 2 kg approx.
