Helium-Neon Laser - 1003165

$1,673.44

SKU:

1003165

Description
Specifications

Helium-Neon Laser - 1003165 Monochromatic, coherent light source for optical experiments, e.g. on diffraction, interference, and hologram reconstitution. Anodised metal housing with key switch, neutral filter for attenuating beam, 2 stand rods and power supply unit. To widen the beam, microscope objectives (e.g. W30614) can be screwed to the beam aperture.
Specifications:

Laser protection class: II
Output power: <0.2 mW (with neutral grey filter) <1 mW (without neutral grey filter)Wavelength: 633 nm
Beam diameter: 0.48 mm
Radiation divergence: 1.7 mrad
Mode: TEMoo
Polarisation: Random
Service life: > 12000 hours
Plug-in power supply: 12 V DC, 1 A
Wide range power supply: unviversal 110 V - 240 V with euro pins
Dimensions: approx. 230x55x90 mm³
Weight: approx. 0.8 kg

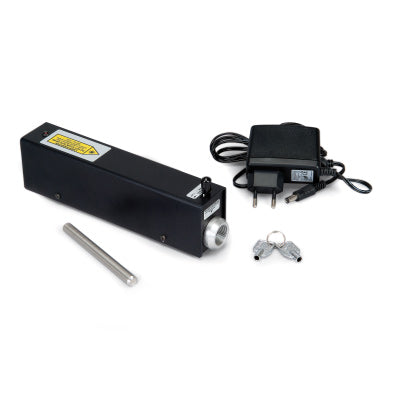

Contents:

1 Helium-Neon Laser
2 Keys
1 Long stand rod
1 Short stand rod, 6-edges
1 Transformer 12 V

Secure online payment with SSL

Expert advice

Financing available

Easy returns & exchanges

International shipping available

Helium-Neon Laser - 1003165

UPC: Not Specified
GTIN/ITF Barcode: Not Specified
Units of Measure: Not Specified
Overall Product Length: Not Specified in
Overall Product Width: Not Specified in
Overall Product Height: Not Specified in
Weight Capacity: Not Specified lbs
Actual Product Weight: 2.17
Product Assembly: Not Specified
Product Installation: Not Specified
Country of Origin: Not Specified
Case QTY: Not Specified/case
Case Weight: Not Specified
Ships Via Freight: Not Specified
Proposition 65 Warning: Not Specified

Laser protection class: II
Output power: <0.2 mW (with neutral grey filter) <1 mW (without neutral grey filter)Wavelength: 633 nm
Beam diameter: 0.48 mm
Radiation divergence: 1.7 mrad
Mode: TEMoo
Polarisation: Random
Service life: > 12000 hours
Plug-in power supply: 12 V DC, 1 A
Wide range power supply: unviversal 110 V - 240 V with euro pins
Dimensions: approx. 230x55x90 mm³
Weight: approx. 0.8 kg
