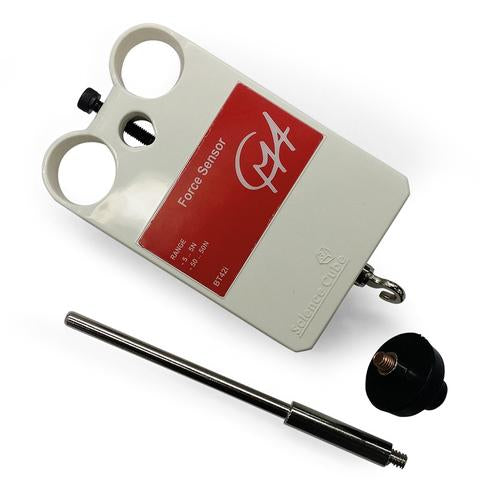

The Force sensor BT42i measures pushing and pulling forces. It uses strain gauge technology. The sensor has two measurement ranges, which can be selected using a switch.
Range: -5 ... 5N, -50 ... 50 N.
Resolution (12-bit): 0.003 N, 0.03 N
Includes: a thumbscrew, a utility handle, a bumper and a hook.
Can be used to:
• replace a hand-held spring scale, can be
• mounted on a ring stand or on a dynamics cart to study collisions.
• measure of centripetal or frictional forces, study Newton’s laws, investigate static and kinetic friction.
| Additionally required: | ||
| Variant 1: (PC/Tablet) | ||
| 1 x | 1021514 | Sensor Cable |
| 1 x | 1022284 | WiLab |
| 1 x | Software License Coach7 | |
| or | ||
| Variant 2: (Data-Logger VinciLab) | ||
| 1 x | 1021514 | Sensor Cable |
| 1 x | 1021477 | VinciLab |
| 1 x | Software License Coach7 | |
