Equipment Set "Ultrasound in Solids" - 1002584
Equipment kit for the investigation of the propagation of longitudinal and transversal waves (shear waves) as well as for the determination of elastic constants (shear modulus, elasticity modulus and Poisson’s ratio) in solid bodies.
Further for the determination of ultrasonic attenuation in liquids by means of time dependent amplitude measurement with sliding reflector
(1002585).

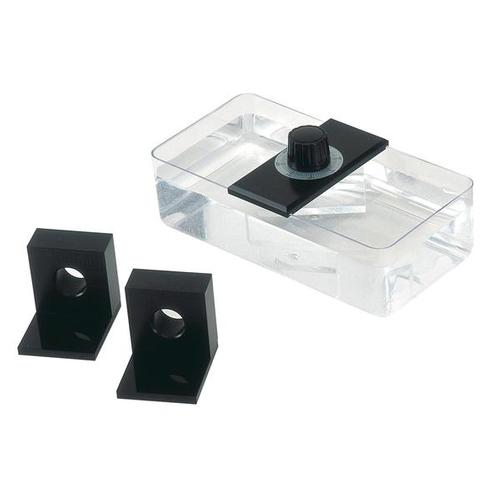

Consisting of acoustic basin, polyacrylic test plate in holder with protractor scale and two probe holders to accommodate and precisely position two 1 MHz
(1018617), 2 MHz
(1018618) or 4 MHz
(1018619) ultrasonic probes on the acoustic basin.
Sound trough: 200x100x60 mm³
Test plate: 104x75x50mm³
Protractor scale: 360º, 5º divisions
Polyacrylate block: 70x45x10 mm³
3.6 x 2.1 x 2.3 in
