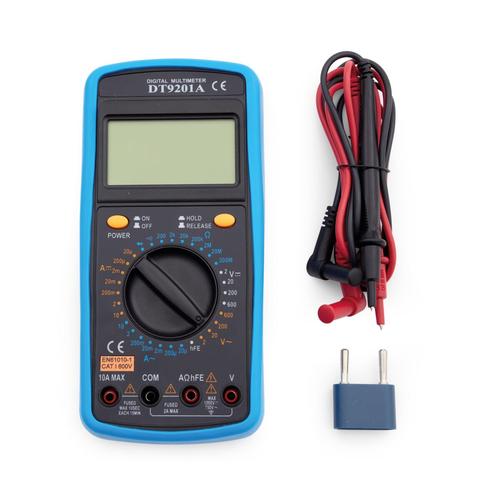

Digital Multimeter E - 1018832
Compact 3½-digit multimeter for measuring voltage, current and resistance as well as for diode and hFE gain testing. All measurement ranges are selected by means of a rotary dial. All measurement ranges are protected against overload. Includes measuring leads and battery.
DC voltage: 2 V − 600 V, 4 ranges, ±0.8% ±5 digits
AC voltage: 2 V − 600 V, 4 ranges, ±1% ±5 digits
DC current: 20 μA − 10 A, 7 ranges, ±1.8% ±2 digits
AC current: 20 μA − 10 A, 7 ranges, ±2% ±3 digits
Resistance: 200 Ω − 200 MΩ, 7 ranges, ±1% ±4 digits
Display: 3½- display LCD, 24 mm, max. 1999
Operating voltage: 9 V battery 6F22
Fuse: F1: F 2 A / 600 V
F2: F 10 A / 600 V, Imax. = 10 A for 10 s with minimum interval 15 mins
Dimensions: 90x190x35 mm3 approx.
Weight: 310 g approx. (with battery)
