Basic Experiment Board (230 V, 50/60 Hz) - 1000573
Experiment Topics:
-
Ohm’s law
-
Parallel resistor circuits
-
Series resistor circuits
-
Unknown resistance
-
Potentiometers
-
Voltage dividers with no load
-
Voltage dividers with load
-

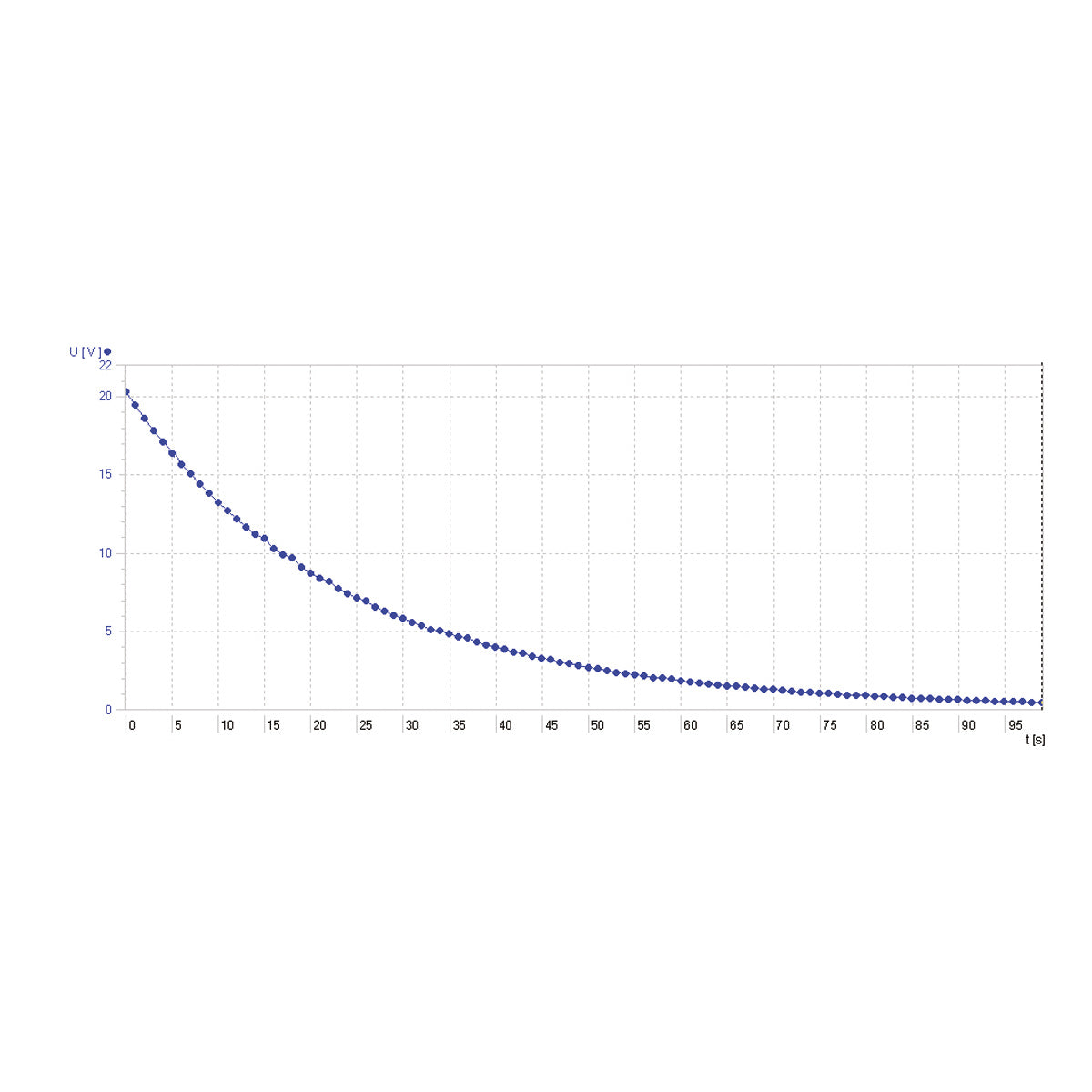

Discharge of a capacitor
-
Bridge rectifiers
-
Half-wave rectifiers
-
Characteristic curve for a lamp
-
Characteristic curve for an LED
-
Characteristic curve for a silicon diode
-
Characteristic curve for a zener diode
-
LC parallel resonant circuit
-
LC series resonant circuit
-
RLC series resonant circuit

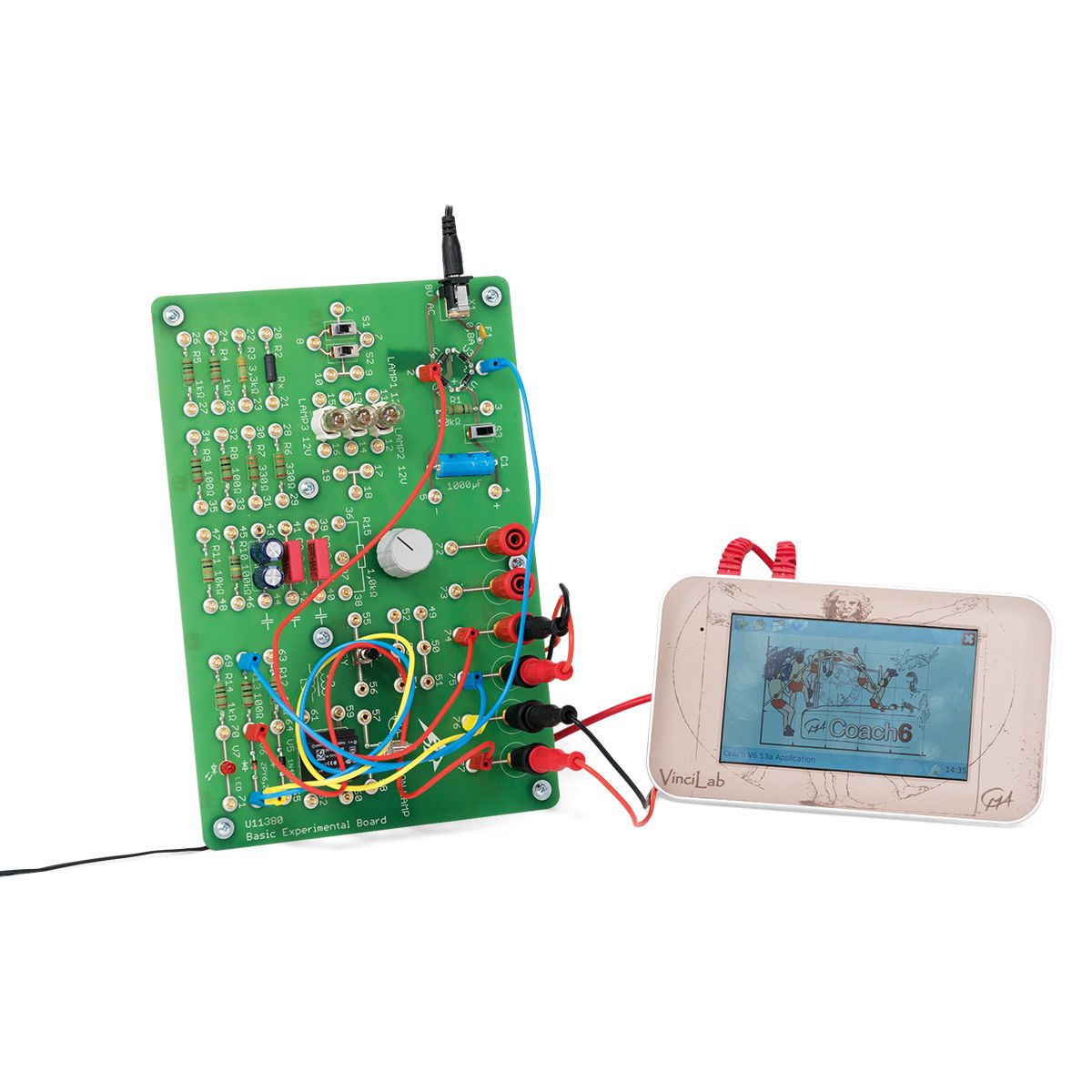

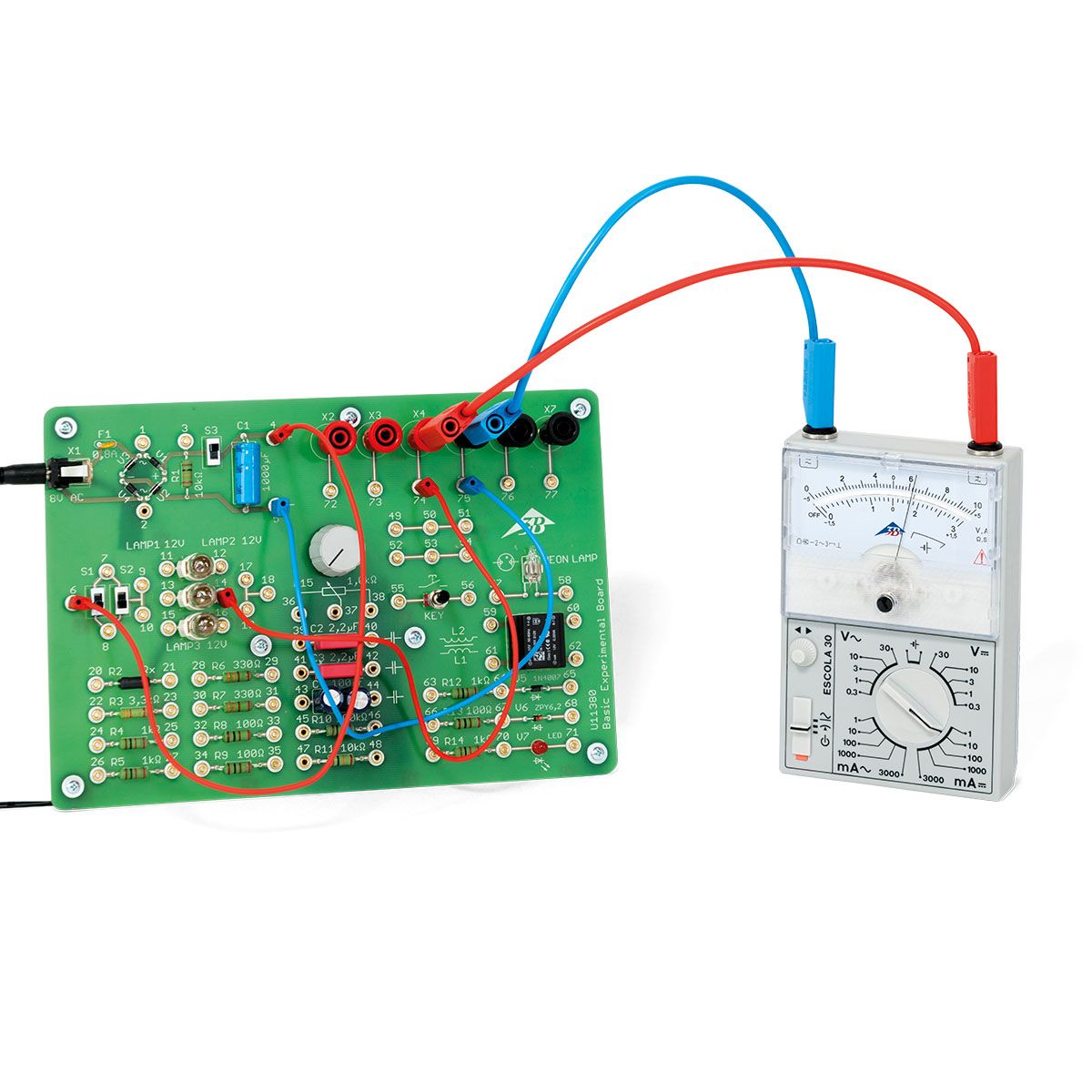

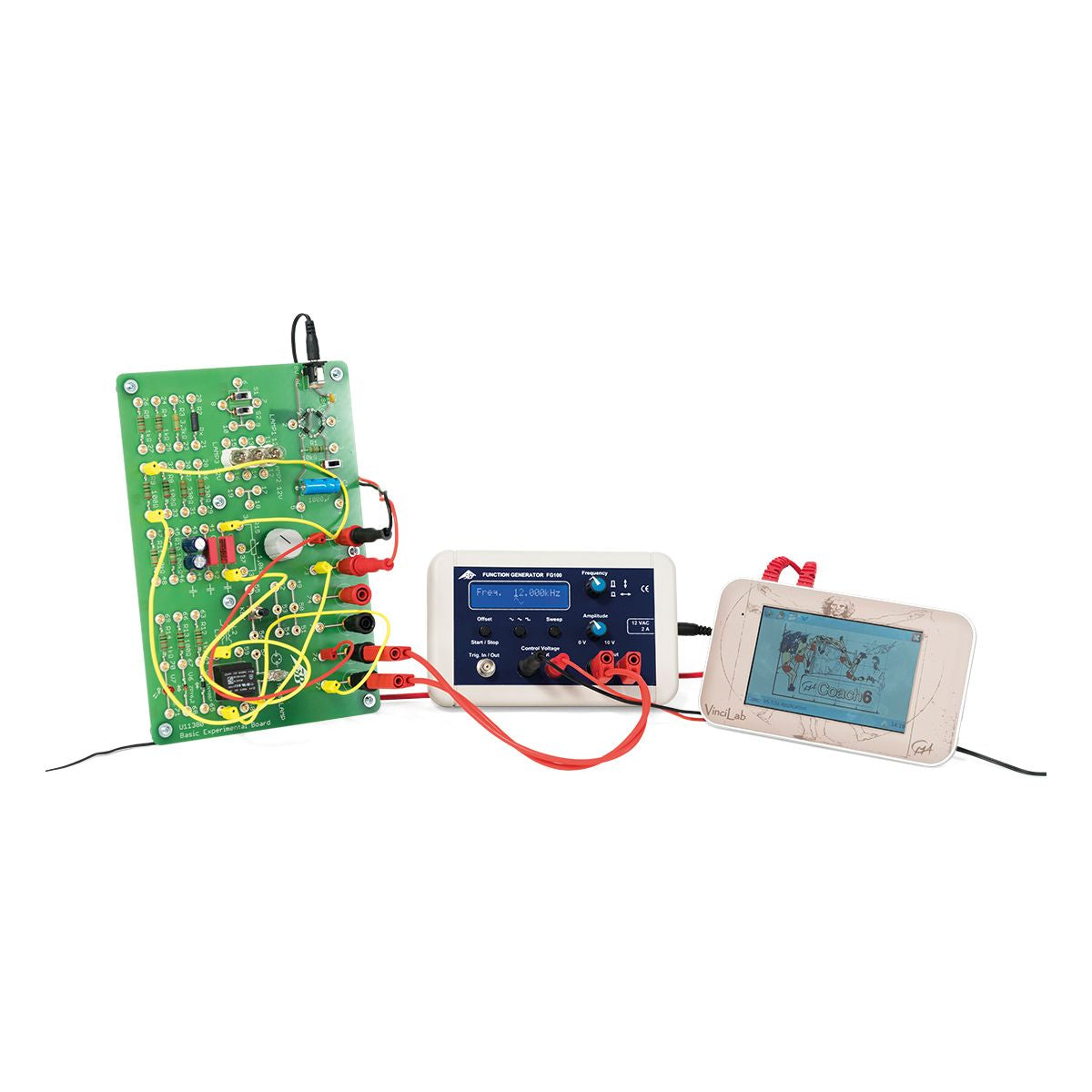

Experiment board with basic circuits for electricity and electronics: circuit components, Ohm’s law, Kirchhoff’s laws, rheostat and potentiometer circuits, two way switching, charging and discharging curves of a capacitor, inductive effects in DC and AC circuits. Simple semiconductor circuits for determining diode characteristics, rectifier circuits, filter factors. The components can be interconnected via 2 mm sockets using jumpers and experiment leads. Six 2 mm /4 mm safety socket adapters are provided for connecting 4 mm experiment leads.
Safety transformer conforming to EN 61558-2-6.
Safe isolation between power supply and output circuits.
Contents:
10 Leads (5 red and 5 blue) with 2 mm plugs, 20 cm long
10 Jumpers
1 Plug-in power supply 8 V AC/500 mA

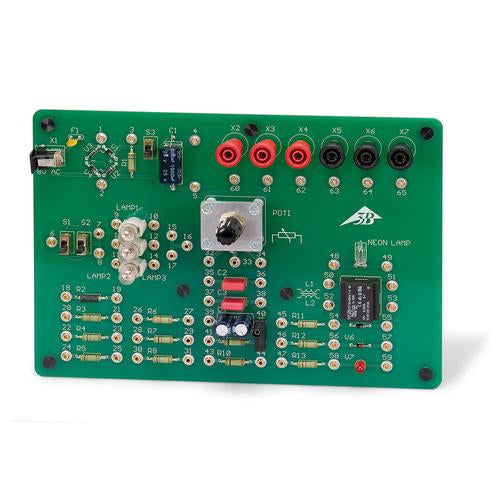

1 board with the following electronic components:
13 0.5 W resistors ranging from 100 W – 100 kW
1 Potentiometer, 1 kW
3 Filament lamps, 12 V
2 Slide switches
5 Capacitors (2x 2.2 µF, 1x 100 µF [bipolar], 1x 1000 µF)
5 1 A rectifier diodes
1 Zener diode
1 Red light emitting diode
1 Neon fluorescent light
1 Transformer, 12 V
Dimensions: approx. 233x160 mm²
