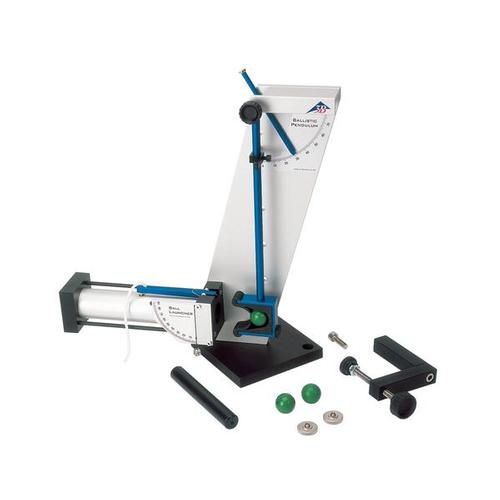

Ballistic Pendulum - 1002656

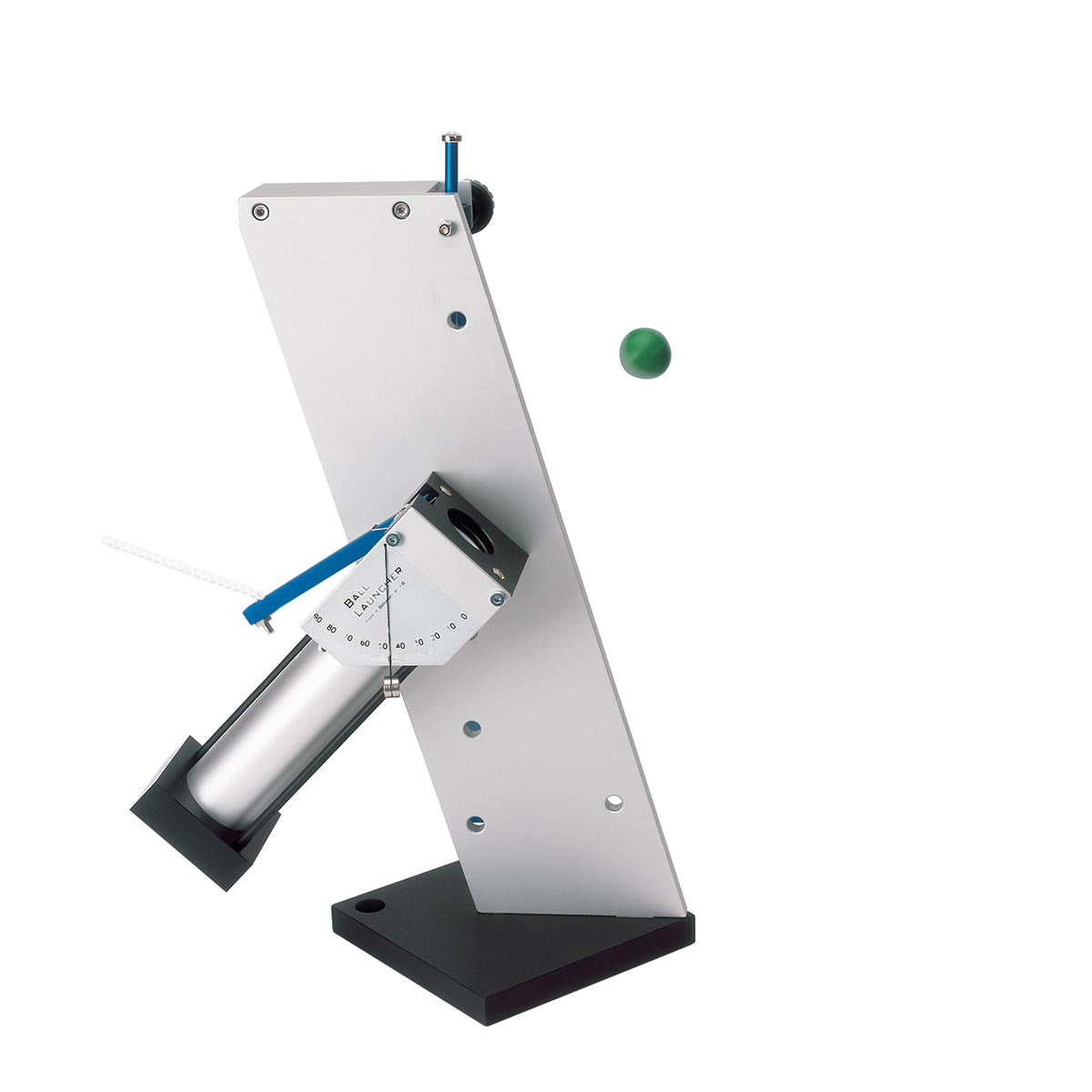

Accessories for the U10360 launcher for use in experiments on elastic and inelastic collision or to be used as a holder for experiments on trajectory. The speed of the balls as measured in launcher experiments or pendulum experiments agree to within approximately ±3%. Additional weights can be used to investigate how pendulums behave with differing angles of deflection at the same speed. For experiments investigating trajectories, the launcher can be set to 5 different launch heights 5, 10, 15, 20 and 30 cm when it is attached to the rear of the ballistic pendulum.
-
Height of pendulum: 370 mm
-
Extra weights: 17.5 g each
-
Base plate: 130x130 mm²
-
Span of bench clamp: 10 – 65 mm
-
Mass: 2.1 kg
Contents:
1 Ballistic pendulum with table clamp
2 Extra weights 24.0 x 7.0 x 6.0 in
