Acoustics Kit - 1000816

$982.81
SKU:
1000816
Title:
Quantity:
Buy now
Acoustics Kit - 1000816

 The acoustics kit allows students to carry out numerous experiments on acoustics independently. A wide variety of sound sources are studied to begin with and the concepts of noise, bangs and tones as well as pitch and loudness are investigated. Waves along a rope are used to illustrate harmonic vibrations and overtones. There is also some extensive study of various different musical instruments. Different high-pitched tones are generated by means of a monochord and the ensuing intervals are calculated experimentally. These studies are expanded to other instruments and can easily lead over to a study of musical notes.

Experiment Topics:

  • Noise, bangs, pure tones
  • Vibrating air columns
  • Whistles and pipes
  • Vibrating bars, plates and bells
  • Infra-sound
  • Ultra-sound
  • Tuning fork with plotter pen
  • Travelling waves along a rope
  • Velocity of propagation of sound
  • Moving sources of sound (Doppler effect)
  • Plate vibrations (Chladni figures)
  • Vibrations of a bell
  • Standing waves on a rope, overtones
  • Sounds of musical instruments
  • Timbre of the human voice
  • Measurement of wavelength (Kundt figures)
  • Resonance
  • Helmholtz ball resonators
  • Sound analysis
  • Loudness
  • Pitch of string instruments
  • Pitch of wind instruments
  • Reed pipe
  • C-major scale and its intervals
  • Triads, harmonies
  • Semitones, major and minor
Dimensions:                          530x375x155 mm³ approx.
Weight:          4.5 kg approx.

Contents:

  • 1 Monochord, with ruler and musical scale
  • 1 Steel string
  • 1 Perlon string
  • 1 Spring balance on support
  • 1 Reed pipe with 8 valves

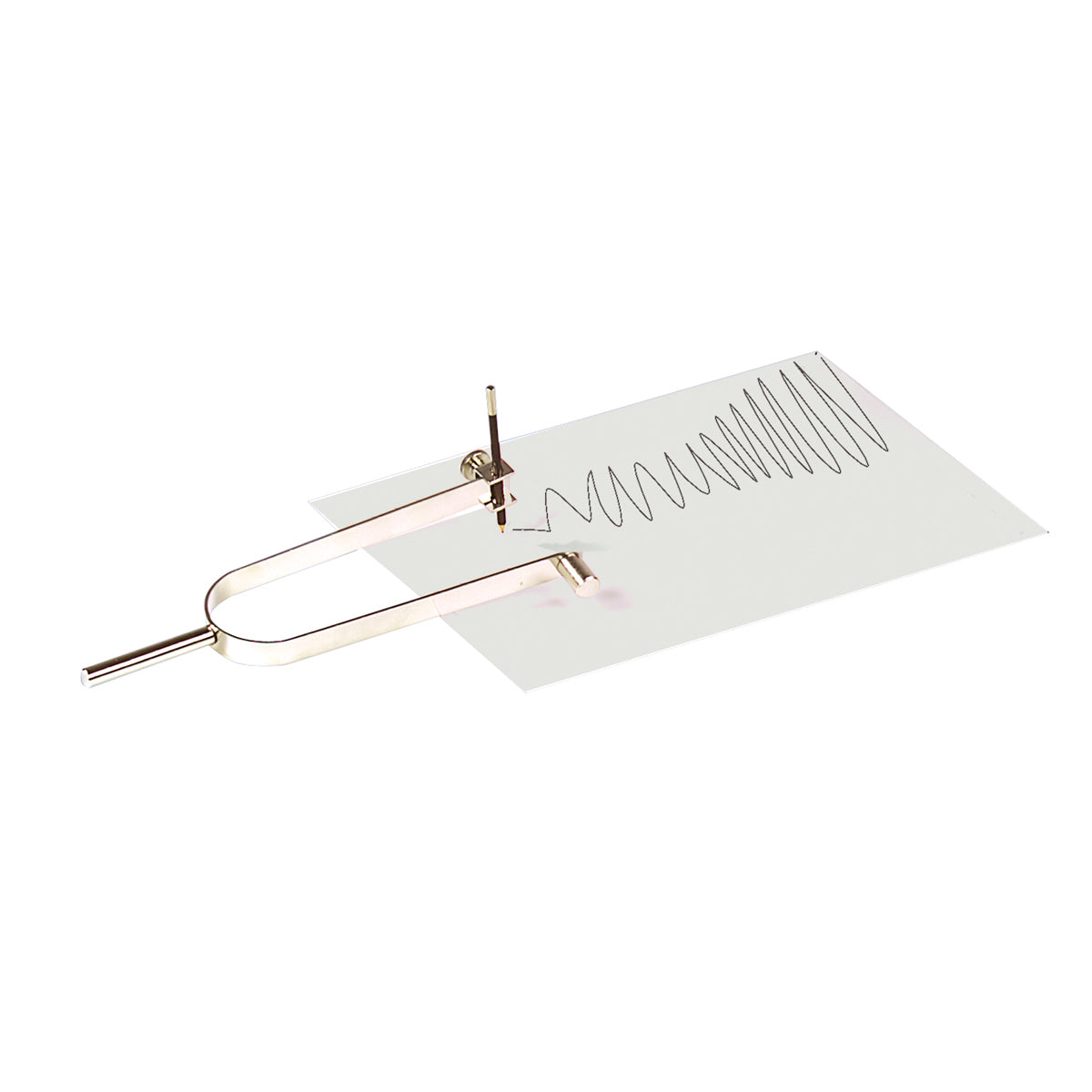

  • 1 Tuning fork with plotter pen, 21 Hz
  • 1 Tuning fork, 440 Hz
  • 1 Light-metal tuning fork, 1700 Hz
  • 1 Pipe
  • 1 Variable-length closed air column
  • 1 Tuned open air column
  • 1 Chladni disc with handle
  • 1 Galton whistle
  • 1 Kundt pipe with retaining clip
  • 5 g Lycopodium powder in sprinkling cellar
  • 1 Metallophone with beater
  • 1 Rope for demonstrating waves
  • 1 Helmholtz resonator, 70 mm dia.
  • 1 Helmholtz resonator, 52 mm dia.
  • 1 Helmholtz resonator, 40 mm dia.
  • 1 Helmholtz resonator, 34 mm dia.
  • 1 Screw clamp
  • 1 Plastic block
  • 1 Plunger
24.4 x 17 x 10.7 in
  • Secure online payment with SSL
  • Expert advice
  • Financing available
  • Easy returns & exchanges
  • International shipping available

    • Features :

    • Hygienic Product : Not Specified
    • Allergy : Not Specified
    Acoustics Kit - 1000816
    • UPC:Not Specified
    • GTIN/ITF Barcode : Not Specified
    • Units of Measure : Not Specified
    • Overall Product Length : Not Specified in
    • Overall Product Width : Not Specified in
    • Overall Product Height : Not Specified in
    • Weight Capacity : Not Specified lbs
    • Actual Product Weight : 14.66
    • Product Assembly : Not Specified
    • Product Installation : Not Specified
    • Country of Origin : Not Specified
    • Case QTY : Not Specified/case
    • Case Weight : Not Specified
    • Ships Via Freight : No
    • Proposition 65 Warning : Not Specified
