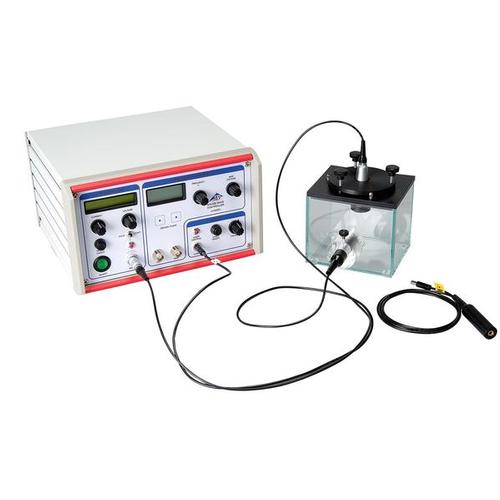

Ultrasonic continuous wave generator for producing continuous, high-powered ultrasonic waves in a wide frequency range of up to 20 MHz. Includes a multi-frequency probe with waterproof cast sound transmitting surface. The transmitter frequency can be adjusted in digital increments of 1 Hz and is indicated on a display. The acoustic power can also be adjusted by regulating the transmitter voltage of the ultrasonic converter and can be turned on and off separately. The transmitting mode is shown by an indicator lamp. The transmitter voltage is shown on an LCD display. The transmitter output supplies a sinusoidal signal with a maximum amplitude of 40 V. The transmitter frequency can also be output as a TTL signal from a monitor terminal. There is also a suitable voltage output for controlling the red and green laser diodes in the Debye-Sears experiment. This, too, can be turned on and off separately and has its own indicator light. The apparatus automatically detects any laser probe that is connected and adjusts the control voltage accordingly.
Features :
MRP: $9,085.44
Ultrasonic continuous wave generator for producing continuous, high-powered ultrasonic waves in a wide frequency range of up to 20 MHz. Includes a multi-frequency probe with waterproof cast sound transmitting surface. The transmitter frequency can be adjusted in digital increments of 1 Hz and is indicated on a display. The acoustic power can also be adjusted by regulating the transmitter voltage of the ultrasonic converter and can be turned on and off separately. The transmitting mode is shown by an indicator lamp. The transmitter voltage is shown on an LCD display. The transmitter output supplies a sinusoidal signal with a maximum amplitude of 40 V. The transmitter frequency can also be output as a TTL signal from a monitor terminal. There is also a suitable voltage output for controlling the red and green laser diodes in the Debye-Sears experiment. This, too, can be turned on and off separately and has its own indicator light. The apparatus automatically detects any laser probe that is connected and adjusts the control voltage accordingly.
Features :
