Steam Engine G - 1002597

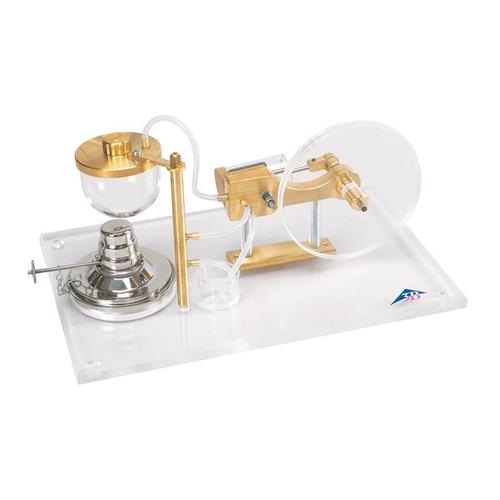

Transparent steam engine for demonstrating how an oscillating steam engine operates. In this engine the cylinder moves around a centre axis. This motion causes the inlet port and outlet port of the steam conduit to open and close.
The base plate and flywheel are made of acrylic glass, while the boiler and working cylinder are made of heat proof quartz glass, making all of the moveable parts and actions very clearly visible. With a ball bearing supported crankshaft made of brass and a safety valve built into the boiler to prevent excessive pressure. Includes spirit burner with adjustable wick for use as heat source.
Rotation speed: 800 rpm
Mech. Power: 1 W
Boiler volume: 50 ml
Run time per load: 20 – 25 min
Max. operating pressure: 0.5 bars
Dimensions: 260x170x110 mm3 12.2 x 9.1 x 9.9 in
Secure online payment with SSL
Expert advice
Financing available
Easy returns & exchanges
International shipping available
Steam Engine G - 1002597
- UPC: Not Specified
- GTIN/ITF Barcode: Not Specified
- Units of Measure: Not Specified
- Overall Product Length: Not Specified in
- Overall Product Width: Not Specified in
- Overall Product Height: Not Specified in
- Weight Capacity: Not Specified lbs
- Actual Product Weight: 2.84
