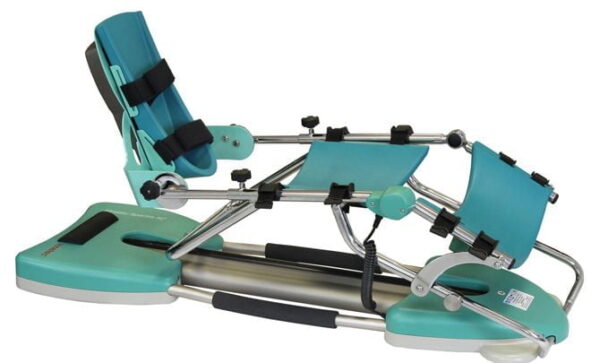

A CPM designed for bariatric patients, with extra wide carriage and high user weight. Using the modern Spectra design, this version is supplied with comfortable, easy-to-apply patient pad kit.
The Kinetec Spectra XL™ benefits from many of the features of the standard Spectra, but features a wider and stronger carriage to enable it to be used in the treatment of bariatric patients. The carriage is 32cm (12.5 inches) wide compared with 25cm (9.8 inches) for other standard CPMs.
The reinforcement of the motor enables it to mobilize legs with extreme dimensions in a safe environment, allowing patients up to 500lbs to use the device.
The Kinetec Spectra XL™ has a wide range of functions all controlled via the digital handset. Functions include speed, ROM, force, pause in extension/flexion, timer, programing, warm-up, by-pass and session timing. This handset can also use patient data capture via a USB and software which can be provided as an accessory.
The handset can be easily locked to prevent alteration of the parameters by patients while in use.
This CPM provides a wide range of motion from -3 degrees of hyperextension to 130 degrees of flexion allows treatment of most knee & hip pathologies.
Accessories include a cart, data capture and warranty extensions.
Product: Weight 13kg (28 pounds)
Product: Splint dimensions 94cm (37 in) x 37 cm (14.5 in) x 33cm (13 in)
Product: Angular limits -10 to 120°
Product: Speed from 60 to 170° per minute
Product: Patient full leg from 71cm (30″) to 99cm (39″); Tibia from 38cm (15″) to 53cm (21″); Femur from 33cm (13″) to 46cm (18″)
Product: Maximum user weight 500 lbs (227kg)
Electrical: Power supply 100-240 V~
Electrical: Frequency 50-60Hz
Electrical: Power consumption 20W
Electrical: Device of type B Class 1
Electrical: IP 20
Storage/Transport Conditions: Temperature -40 to 70°C / -40 to 160°F
Storage/Transport Conditions: Relative humidity up to 90%
Operating Conditions: Room temperature 10 to 40°C (50 to 105°F)
Operating Conditions: Relative humidity up to 80%
Warranty: 2 Years
"""
