Pointer Excel II LT™ Stimulator - pt.excel.lt

$247.50

SKU:

pt.excel.lt

Description

Product Description

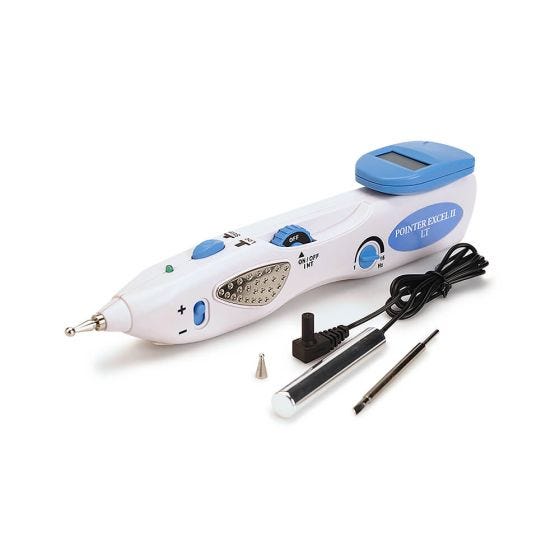

The Pointer Excel LT is the latest hand-held stimulator. Features a built-in, 0.35" x 1.0" LCD digital meter which displays the frequency.

An effective push button adjustable stimulation offers immediate treatment. Based on the setting of the output dial, either normal milli-amp output or micro-amp current output is produced (the blue zone on the dial is microamp).

The Pointer Excel LT also includes more advanced features. The frequency is adjustable (1 to 16 Hz) and is also displayed on the LCD digital display when the stimulation button is pressed. Furthermore, a polarity reversal switch offers the options of tonification (+) or sedation (-) treatment.

Unit features two grounding plates(allowing use with either left or right hands) as well as a hand probe with grounding pole and attached wire. Two probe tips are included with unit: ear 2 mm (0.08") and body 4 mm (0.16"). Other standard accessories include carrying case and instructions.

Warranty: 1 year, unit only

9V Battery not included.

Download the instruction manual for the Pointer Excel II LT.

Specifications	500 ohm test load
Output Channels:	One
Frequency:	1-16 Hz (adjustable)
Frequency meter:	LCD, 0.35" x 1.0"
Volts and current: Normal dial Blue zone	22.5 volts, 0-45 mA (milliamp) 11 volts, 0-2 mA
Polarity Reversal:	+/- by switch
Pulse width:	260 microseconds (µS; fixed)
Pulse shape:	Biphasic square wave with a negative spike
Pulse mode:	continuous
Skin impedance monitoring:	meter, sound, and light indication
Power source:	one 9 volt battery
Size, weight, color:	8.9" x 2" x 1.5", 95 grams, white & blue
