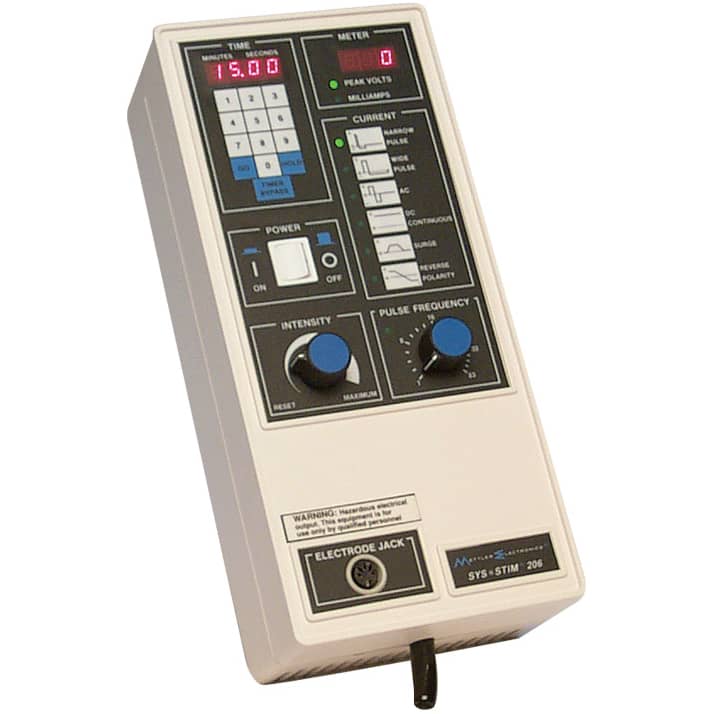

Mettler Sys*Stim 206 Neuromuscular Stimulator - MLR-ME-206

$1,403.60$1,651.30
SKU:
MLR-ME-206
Title:
Quantity:
Buy now
Mettler Sys*Stim 206 Neuromuscular Stimulator - MLR-ME-206

The Mettler Sys*Stim 206 Neuromuscular Stimulator (#ME 206) comes complete with all the necessary components to perform neuromuscular electrical stimulation:

  • #1004: Mounting Plate.
  • #2002: (4) Sponge Electrodes - 4" x 4".
  • #2004: Sponge Electrode - 3.5" x 7".
  • #2009: (2) Electrode Straps - 48".
  • #2027: (4) Pin to Banana Adapters.
  • #2030: Bifurcation Cable Set.
  • #2260: Electrode Cable Set for a Single Channel.
  • #7293: Detachable Line Cord - Domestic.
  • Instruction Manual.

Before Purchasing: Before we can proceed with your order, please let us know whether you are a doctor, therapist, or have a prescription for the Sys*Stim 206 Neuromuscular Stimulator. If you have a prescription, please forward a copy of the prescription to orders@mfimedical.com.

Warranty: 3 Years Limited - Against Defects in Materials and Workmanship.

The Sys*Stim 206 is a one-channel unit that features four different waveforms, all in a lightweight package. The narrow pulse is suited for TENS while the wide and AC pulses can be used for muscle stimulation. Direct Current can be used to stimulate denervated muscles or perform iontophoresis.

The Sys*Stim 206 is an ideal companion to the Sonicator 716 for combination therapy.

We recommend you use the Mettler EZ-Trode Self-Adhesive Electrode or V Trode Self-Adhesive Electrode with the Sys*Stim 206.

Mettler Sys*Stim 206 Neuromuscular Stimulator - MLR-ME-206

Mettler Sys*Stim 206 Neuromuscular Stimulator Features

  • Membrane Entry Panel: Simplifies treatment control.
  • Timer Entry Selector: Sets treatment time from 1 to 29 minutes with Timer Bypass option to initiate a continuous run.
  • Go/Hold Keys: Permit operator to start or suspend treatment with one touch.
  • Intensity Control: Allows operator to vary output voltage to the patient during treatment.
  • LED Displays: Indicate output intensity in peak volts or milliamps, and treatment time remaining.
  • Treatment Mode Selectors: Include four preset waveforms plus Surge and Reverse Polarity, enabling operator to choose the optimum waveform for each treatment and muscle group.
  • Four Waveforms available: Narrow, wide, and AC pulses along with continuous direct current.
  • Pulse Frequency Control: Permits user to vary the repetition of pulses applied to the patient from 1 to 83 pps, in all modes except Surge.
  • Offers three versions of a biphasic waveform: the waveforms are preset to treat small, medium, and large muscle groups.
  • Offers the DC waveform, which is used to treat denervation.
  • Made in the USA.
Mettler Sys*Stim 206 Neuromuscular Stimulator - MLR-ME-206

Mettler Sys*Stim 206 Neuromuscular Stimulator Specifications

  • Weight: 5.6 lb (2.5 kg).
  • Dimensions: 13.4" (L) x 6" (D) x 4.3" (H) (34 cm x 15 cm x 11 cm).
  • Line Input: 120 VAC (± 10%) / 60 Hz.
  • Maximum Treatment Time: 29 minutes.
  • Channels: 1.
  • Waveforms:
    • Asymmetrical biphasic with zero net DC (Narrow and Wide pulses).
    • Symmetrical biphasic with zero net DC (AC pulse).
    • Continuous Direct Current.
  • Voltage: 0 to 102 VDC.
  • Current:
    • 30 mA maximum (DC Continuous).
    • 100 mA peak (Narrow Pulse, Wide, and AC Pulses).
  • Phase Duration:
    • Narrow Pulse: 100 µs followed by 400 µs at 1/4 amplitude.
    • Wide Pulse: 300 µs followed by 1200 µs at 1/4 amplitude.
    • AC: 300 µs in each direction.
  • Frequency (Pulse Mode): 1 - 83 Hz.
  • Surge Cycle: 6 seconds on and 18 seconds off with 3 second Up and Down ramps. Pulse frequency set to either 35 or 83 Hz.
Mettler Sys*Stim 206 Neuromuscular Stimulator - MLR-ME-206

Mettler Sys*Stim 206 Neuromuscular Stimulator Accessories

The following accessories are compatible and commonly purchased with the Sys*Stim 206 Neuromuscular Stimulator:

  • #2221: EZ-Trode Self-Adhesive Electrode with Aloe Vera - 2" Diameter Round.
  • #2222: EZ-Trode Self-Adhesive Electrode with Aloe Vera - 2.75" Diameter Round.
  • #2223: EZ-Trode Self-Adhesive Electrode with Aloe Vera - 2" x 5" Rectangular.
  • #2224: EZ-Trode Self-Adhesive Electrode with Aloe Vera - 2" Square.
  • #2260: Electrode Cable Set for a Single Channel.
  • #2262: Plug Adapter.
  • #2263: Single Channel Cable Adapter Set.
  • #2702: V Trode Self-Adhesive Electrode - Round - 2".
  • #2703: V Trode Self-Adhesive Electrode - Round - 2.75".
  • #2704: V Trode Self-Adhesive Electrode - Oval - 2" x 4".
  • #2705: V Trode Self-Adhesive Electrode - Square - 2".
Mettler Sys*Stim 206 Neuromuscular Stimulator - MLR-ME-206

Mettler Sys*Stim 206 Neuromuscular Stimulator Literature

Mettler Sys*Stim 206 Neuromuscular Stimulator User Manual

Mettler Sys*Stim 206 Neuromuscular Stimulator Brochure
