Light Box P - 1018471

$307.06
SKU:
1018471
Title:
Quantity:
Buy now
Light Box P - 1018471

Colours:

  • Coloured light and coloured objects
  • Mixture of colours

 Shadows:

  • Casting shadows
  • Coloured shadows

Reflection:

  • Reflection from a plane mirror
  • Reflected images, image reversal
  • Multiple reflections from a mirror
  • Reflection from a concave mirror (focal point and spherical aberration)
  • Reflection from a parabolic mirror
  • Reflection from a convex mirror

 Refraction:

  • Determining refractive index with a semi-circular object
  • Determining refractive index with a parallel block
  • Angle of minimum deflection for a prism
  • Total internal reflection in a semi-circular object
  • Total internal reflection in a prism
  • Focal point of a converging lens
  • Focal point of a diverging lens
  • Spherical aberration

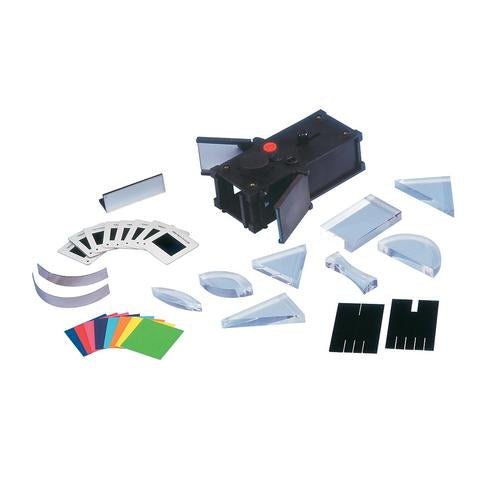

Equipment set for the execution of bench-based optical experiments, consisting of a light box in a sturdy plastic housing and numerous optical components. The complete set is housed in sturdy styrofoam storage case. The light box has four light outlets: front, back, and two side outlets with hinged mirrors for experiments on color mixing and shadows. All openings are equipped with mounts for optical components in 50 x 50 mm slide frames. Parallel, convergent, and divergent light can be generated by adjusting a mixer lens at the front of the lamp. There are two double-sided slit diaphragms available so that four different beam configurations can be created.
(Note: Power supply not included)

Contents:
  • 1 Light box
  • 1 Plane mirror (glass)
  • 1 Concave mirror (metal)
  • 1 Convex mirror (metal)
  • 1 Bi-convex lens, large (transparent acrylic)
  • 1 Bi-convex lens, small (transparent acrylic)
  • 1 Bi-concave lens (transparent acrylic)
  • 1 Parallel plate (transparent acrylic)
  • 1 Semi-circular object (transparent acrylic)
  • 1 60° prism (transparent acrylic)
  • 1 Asymmetrical 90° prism (transparent acrylic)
  • 1 Symmetrical 90° prism (transparent acrylic)
  • 2 Slit diaphragms
  • 8 Color filters (in slide frame)
  • 8 Color charts
  • 1 Pair of connector leads with 4-mm plugs
Specifications:
  • Lamp: 12 V, 36 W
  • Connections: 4-mm socket
  • Light box: 17.5 x 10.0 x 6.5 cm approx.
  • Storage case: 25 x 24 x 10 cm approx.
12.6 x 12.6 x 5.6 in
  • Secure online payment with SSL
  • Expert advice
  • Financing available
  • Easy returns & exchanges
  • International shipping available
    • Light Box P - 1018471
    • UPC: Not Specified
    • GTIN/ITF Barcode: Not Specified
    • Units of Measure: Not Specified
    • Overall Product Length: Not Specified in
    • Overall Product Width: Not Specified in
    • Overall Product Height: Not Specified in
    • Weight Capacity: Not Specified lbs
    • Actual Product Weight: 3.31
    • Product Assembly: Not Specified
    • Product Installation: Not Specified
    • Country of Origin: Not Specified
    • Case QTY: Not Specified/case
    • Case Weight: Not Specified
    • Ships Via Freight: Not Specified
    • Proposition 65 Warning: Not Specified
