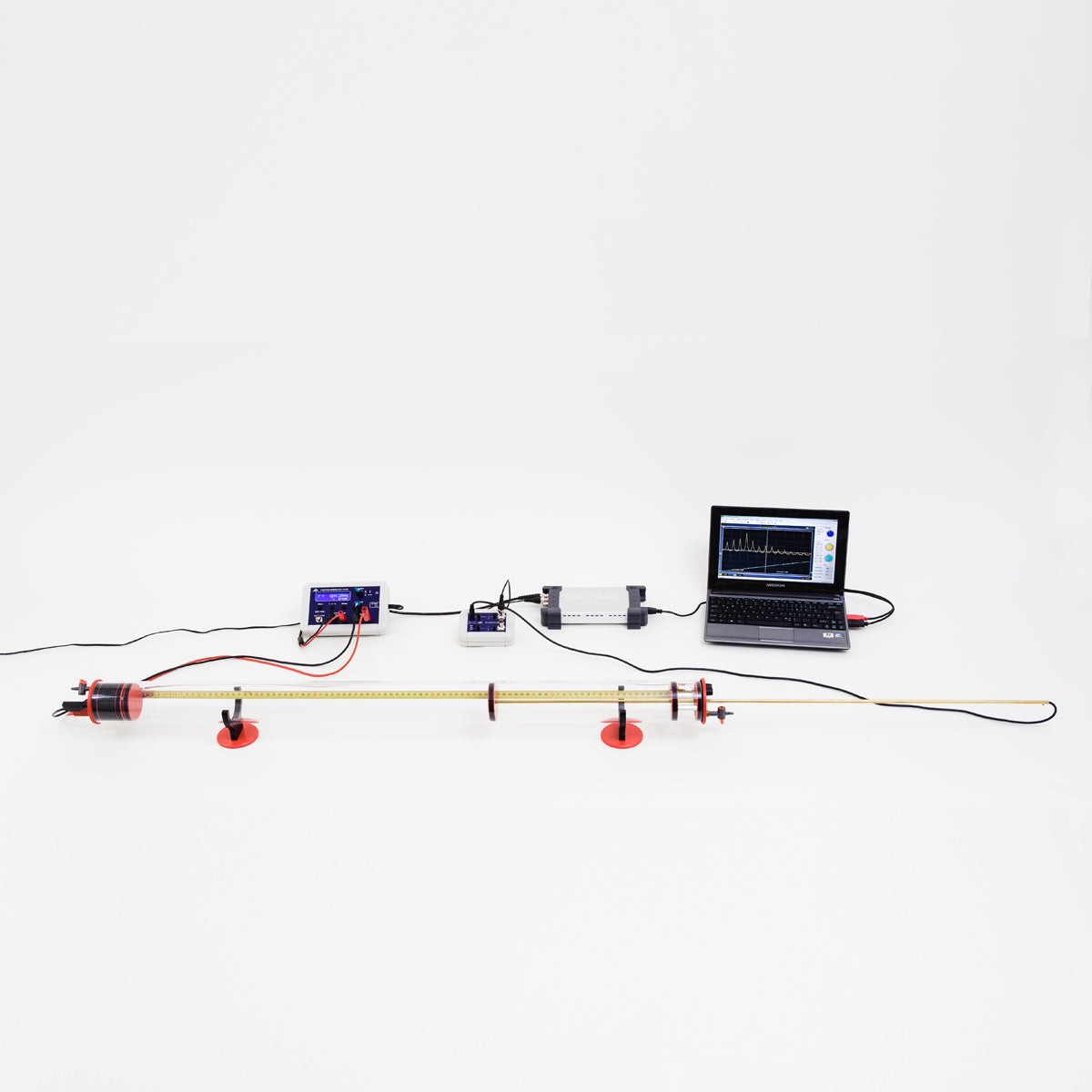

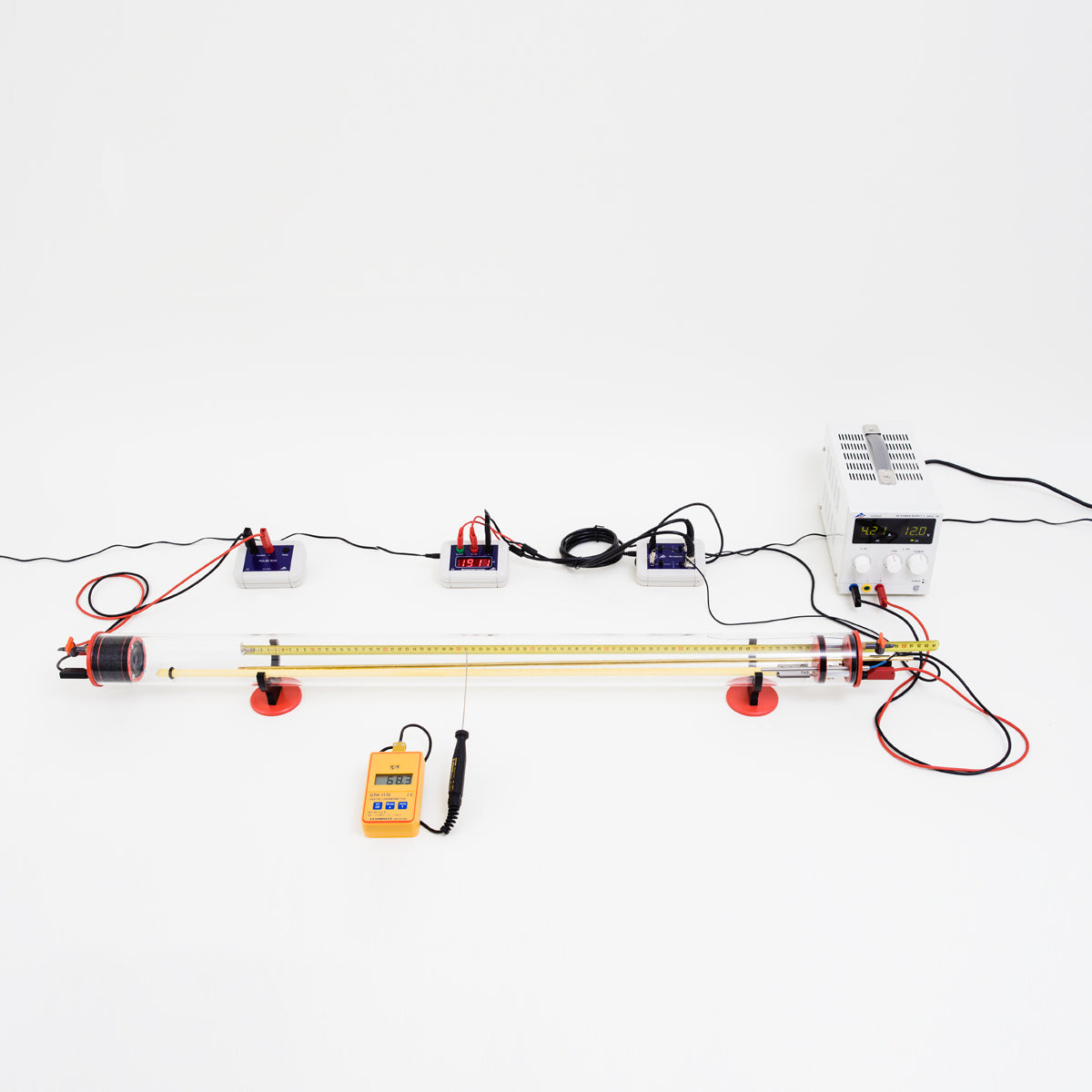

Sound tube made of transparent acrylic with loudspeaker and movable scale for
quantitative investigation of sound waves in air or other gases, in particular
for measurement of wavelength and speed of sound. With two stand bases, capillary disc, sensor disc, two hose connectors with stopcock for filling with gas, fitting and guide for long microphone probe, hole for short microphone probe, plus holder and connector for heating rod K.
Refer also to experiments UE1070310 and UE1070320.
Frequency range: 20 to 5000 Hz
Length of sound tube: 1000 mm
Diameter of sound tube: 70 mm
Scale: 950 mm
Hose connectors: 5 mm diameter
Speaker power output: 2 W
Impedance of speaker 50 Ω
Weight: 1.25 kg approx.
47.2 x 7.9 x 7.9 in
Features :
MRP: $609.88
Sound tube made of transparent acrylic with loudspeaker and movable scale for
quantitative investigation of sound waves in air or other gases, in particular
for measurement of wavelength and speed of sound. With two stand bases, capillary disc, sensor disc, two hose connectors with stopcock for filling with gas, fitting and guide for long microphone probe, hole for short microphone probe, plus holder and connector for heating rod K.
Refer also to experiments UE1070310 and UE1070320.
Frequency range: 20 to 5000 Hz
Length of sound tube: 1000 mm
Diameter of sound tube: 70 mm
Scale: 950 mm
Hose connectors: 5 mm diameter
Speaker power output: 2 W
Impedance of speaker 50 Ω
Weight: 1.25 kg approx.
47.2 x 7.9 x 7.9 in
Features :
