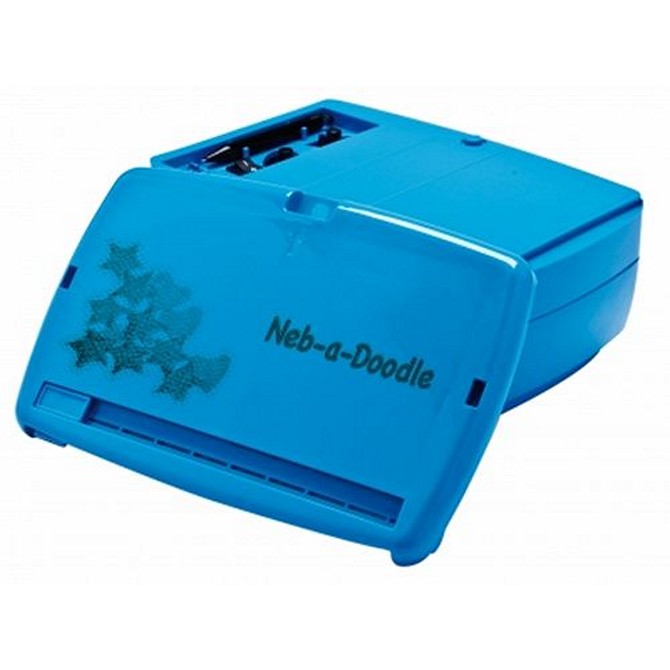

Graham-Field John Bunn Neb-U-Tyke Neb-A-Doodle Pediatric Nebulizer - GF-JB0112-070
This interactive, child-friendly design provides a solution for effective aerosol treatment for children.
Designed with an integrated drawing board, the Neb-a-Doodle will keep child relaxed and entertained during aerosol treatment and can be used over and over again.
- Reliable, piston-driven compressor
- Interactive, drawing board for child to draw, doodle and write during nebulizer treatment
- Convenient and compact design for easy transport and storage
- Comes complete with Nebulizer Accessory Kit
- Five year limited warranty
- Designed to meet the requirements of HCPCS Code: E0570
- Neb-u-Tyke Neb-a-Doodle Nebulizer Compressor
- User Manual
- Nebulizer Accessory Kit complete with
- Reusable nebulizer (single patient use only)
- Adult mask
- Pediatric mask
- Mouthpiece
- PVC tubing
- “T” adapter
- Spare filters
- Reservoir tube
- Power 115VAC, 60Hz
- Power Consumption ? 60 watts
- Operating Temperature Range 41°F TO 104°F
- Operating Humidity Range 30 to 95% RH
- Storage Temperature Range 40°F TO 158°F
- Storage Humidity Range 10 to 95% RH
- Dimensions 10" — 6.5" — 4.2"
- Weight 4 lbs
- Max Pressure (Compressor) 32.5 psi
- Max Flow (Compressor) Approx 12 LPM
- Particle Size (Nebulizer) ?5 microns
- Capacity (Nebulizer) 5 ml
- Method Of Nebulization Piston Driven
- Sound Level under 57 dBA
PRODUCT-MANUFACTURER: Graham-Field, MFR PART NUMBER: JB0112-070
