Experiment Motor with Gearbox - 1021806
Experiment motor for universal use in experiments on rotational motion, e.g. for experiments using the Watt’s governor (P-1009695). Can also be used as a generator in conjunction with the included hand crank. Robust clockwise and counter-clockwise rotating IDC motor with epicyclic gearbox and quick-action chuck in a tough anodized aluminum casing with removable and adjust able stainless steel stand rod. Speed of rotation is adjusted by altering the supply voltage. Adjustable torque. Includes 3 belt pulleys of diff erent diameters on a mounting axle.
Speed without load: approx. 650 rpm at 18 V
Speed sensitivity: approx. 36 rpm per V
Span of chuck: 0.8 to 10 mm
Pulleys: 10 mm diam., 20 mm diam., 40 mm diam.
Axle: 10 mm diam.
Drive belt: 130 mm diam. x 4 mm
Nominal voltage: 1.5 - 18 V DC
Connection: via 4-mm safety sockets
Dimensions: approx. 210x110x70 mm³
Mass: approx. 1.2 kg

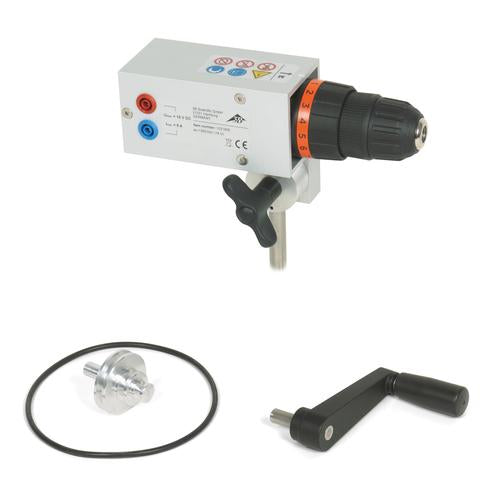

Contents:
Experiment motor
Stand rod with knurled screws
Hand crank
Pulleys
Drive belt
