Electrometer (230 V, 50/60 Hz) -

$0.00$362.31
Title:
Quantity:
Sold Out

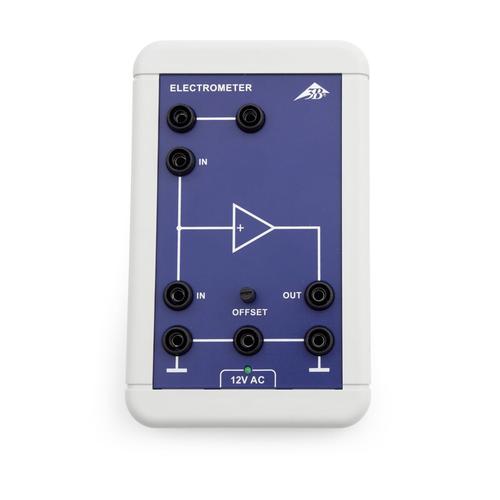

Electrometer (230 V, 50/60 Hz) - Impedance converter with high-resistance input for measuring extremely small charges and currents. The input signal is converted into a proportional voltage, which can then be measured with an external voltmeter. During the measurement the potentials of the electrometer and the experimenter must be matched by using a metal rod connected to earth. Includes a 12-V AC plug-in power supply.
Please check the recommended and required tabs for additional supplies.
Aplications:
  • Measurement of charge and voltage in electrostatics
  • Measurement of charge and voltage for a plate capacitor
  • Ionisation of air by burning gases or α radiation
  • Hallwachs effect (external photoelectric effect)
Specifications:
  • Electrometer gain factor: 1.00
  • Input resistance: >1012 Ω
  • Output resistance: <1 kΩ
  • Input current: <10 pA
  • Input capacitance: <50 pF
  • Max. output voltage: ±8 V
  • Resistance to excess voltage: 1 kV (from low-resistance sources), 10 kV (from high-resistance sources)
  • Supply voltage: 12 V AC
Video tutorial:
