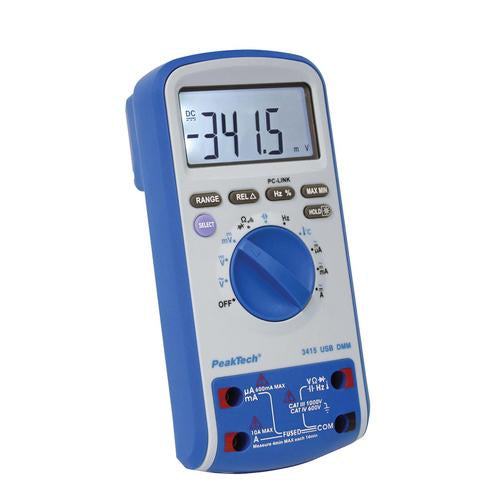

Digital Multimeter P3415 - 1008631
This innovative digital multimeter uses an opto-coupled USB cable to connect directly to a computer to allow you to record up to three measurements per second. A wide range of functionalities such as autoranging, relative measurements, and Min/Max/Hold also make this a highly versatile stand-alone tool. Measuring modes include DCV, ACV, DCA, ACA, resistance, diode, continuity, frequency, capacitance and temperature. The unit is supplied with a carrying case, USB cable, Software for Windows XP/7, type-K thermocouple, test leads, test clips, battery and operation manual.
-
DC voltage: 600 mV – 1000 V, 5 ranges
-
AC voltage: 600 mV – 700 V, 5 ranges
-
DC current: 600 μA – 10 A, 6 ranges
-
AC current: 600 μA – 10 A, 6 ranges
-
Resistance: 600 Ω- 60 MΩ, 6 ranges
-
Frequency: 100 Hz – 1 MHz, 5 ranges
-
Capacity: 60 nF – 300 μF, 5 ranges
-
Temperature: -55 °C – 1000 °C, 2 ranges
-
Display: 35/6digit LCD, 18 mm
-
Operating voltage: 9 V battery (included)
-
Safety classification: CAT III 1000 V / CAT IV 600 V (IEC-1010-1)
-
Fuse: F1: F 0.63 A / 1000 V
F2: F 10 A / 1000 V,
Imax. = 10 A for 4 mins with minimum interval 14 mins
-
Dimensions: 90x190x40 mm³ approx.
-
Weight: 500 g approx.
