Copper Sample for Hall Effect - 1018751

$283.69
SKU:
1018751
Title:
Quantity:
Buy now

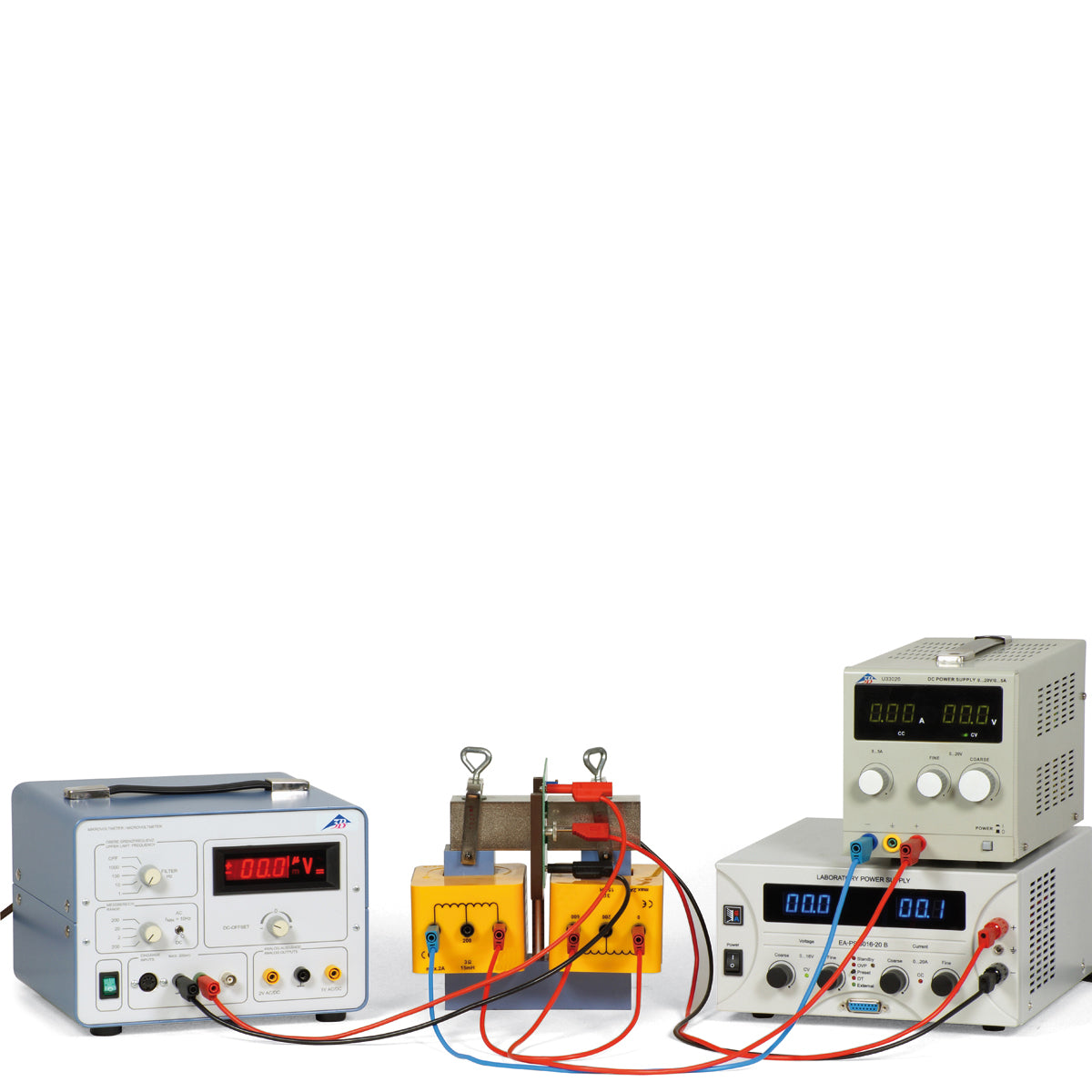

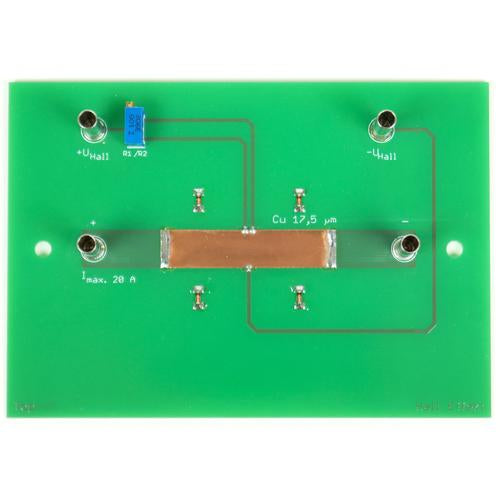

Copper Sample for Hall Effect - 1018751 For verifying the existence of a Hall-effect voltage across a copper sample being supplied with a current I and located in a magnetic field acting perpendicular to the direction of the current. Ready-to-use sample is soldered onto a printed circuit board with 4-mm connection sockets. The combined holder for Hall effect is required in order to attach the sample within the magnetic field of an electromagnet.
Thickness of copper sample:                   17.5 µm
Max. current through copper sample:     20 A DC
Sample surface area:         10x44 mm2
Dimensions: 130x90x25 mm3 approx.
Weight:                                           45g approx.

Themen:
  • Hall-Effekt an Metallen
  • Normaler und anormaler Hall-Effekt
  • Hall-Koeffizient
